SPLITTING HEIGHT54/67/105 CMADJUSTABLE |
 |
SPLITTING FORCE9 TON |
 |
SPLITTING DIAMETER50 CM |
Powerful, safe and persistent! A choice of quality and prestige.

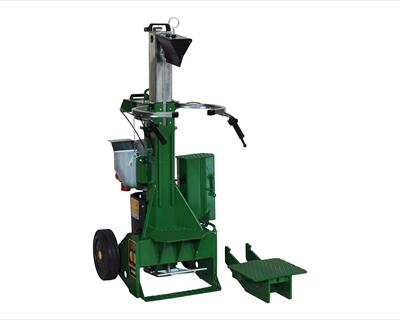

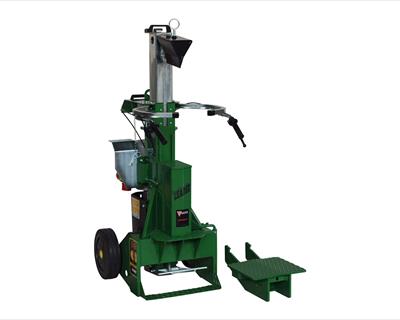

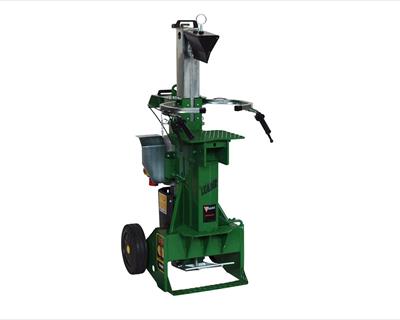

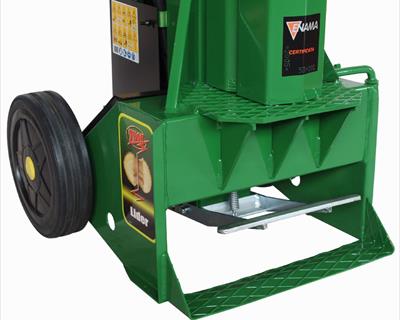

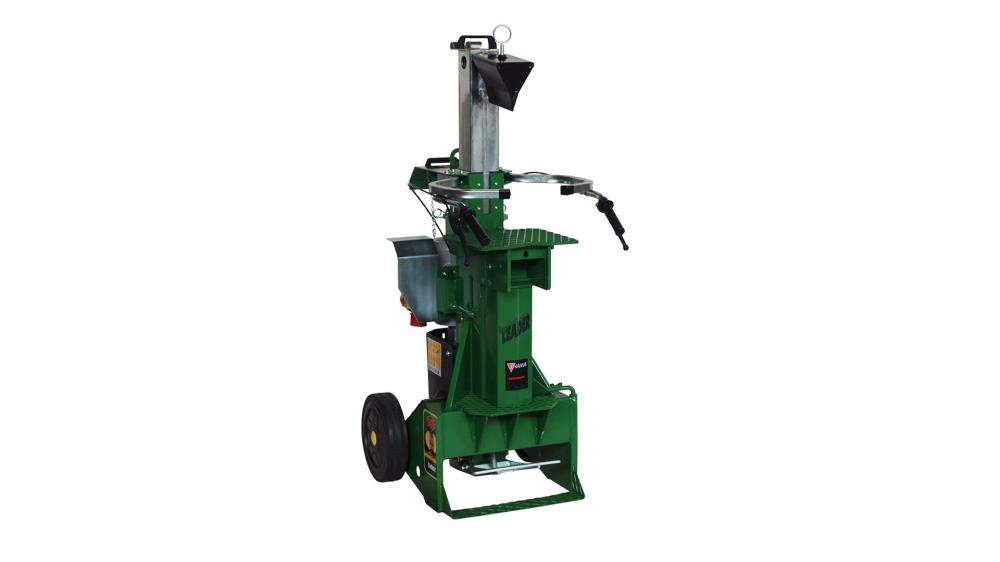

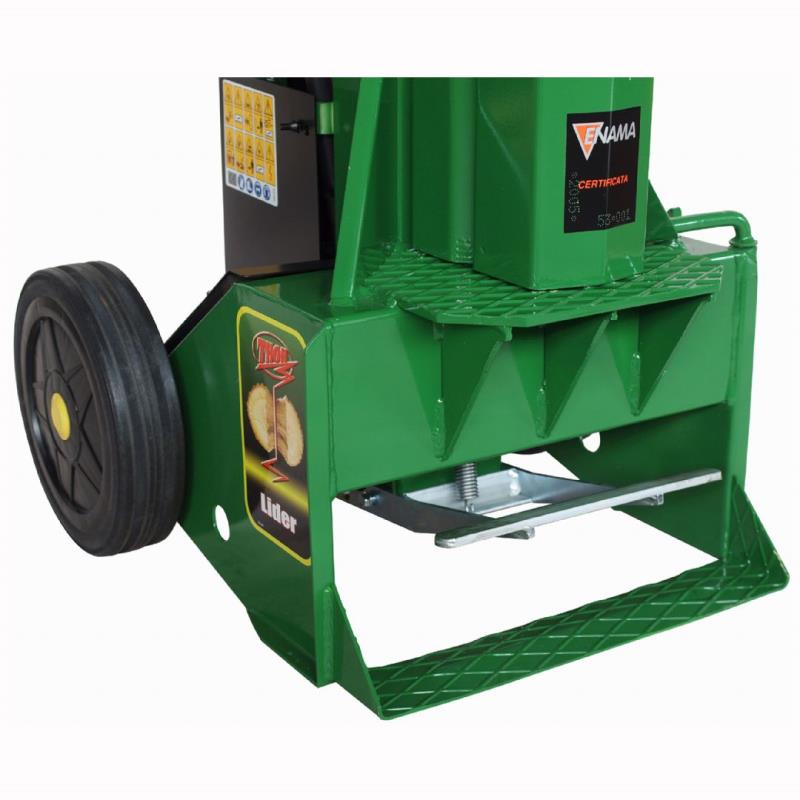

Hydraulic log splitter with vertical working position. With exclusive centering control by pedal.
They split very big and difficult logs with outstanding ease.
They take up very little space and they are always ready to use.
Features |
|---|
The controls are of the “System-LEADER” type (THOR patent). |
The splitting stroke is adjustable between 2 and 50 cm. |
Three working heights, 54 / 67 / 105 cm, can be adjusted by using the tables. |
The transport wheels are semi-full wheels: 30 cm dia. |
The ABS rear cover is included. |
Available versions |
|
|---|---|
EL 230 Volt with double pump |
|
EL 400 Volt with single pump |
|
EL 110 Volt 60 hz engines (upon request) |
|
VS petrol engine with single pump |
|
KOMBI EL+PTO Combined power supply (upon request) |
Accessories Find out which accessories fit on the different Lider models.
 |
 |
 |
 |
 |
60° Cutter |
Cross cutter |

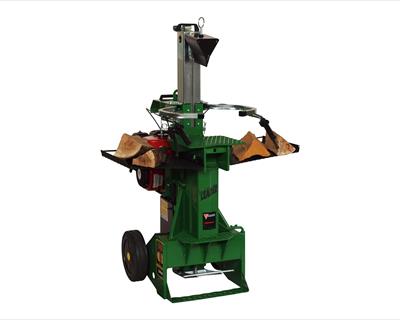

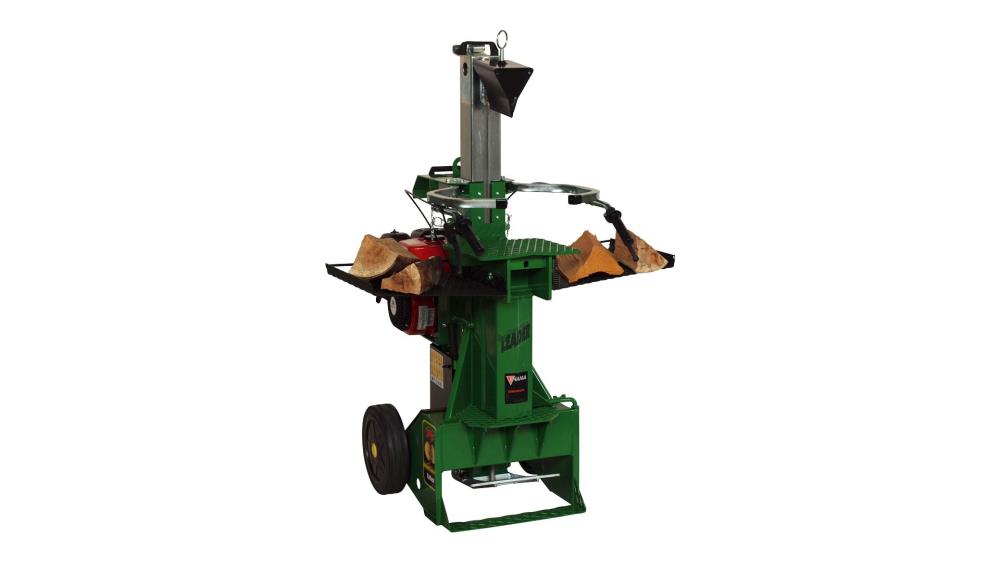

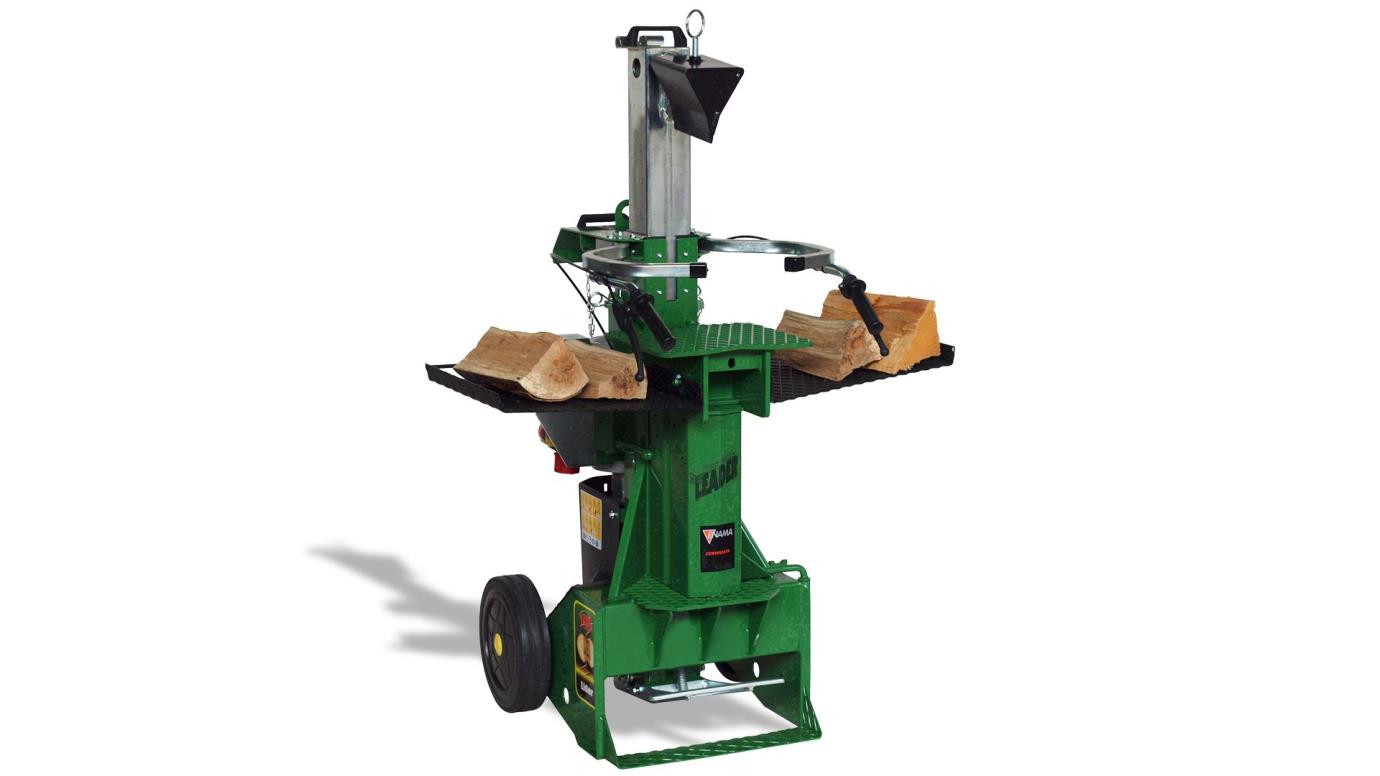

Side extensions |
Lifting hook |
Pneumatic wheels set
|
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 73.223.PD EL 230 Volt with single pump |
9 Ton | 3 - 2,2 | 5 - 50 | 10 | 140 |
| 73.384.90 EL 400 Volt with single pump |
9 Ton | 4 - 3 | 5 - 50 | 5,3 | 140 |
| 73.VS.55 VS petrol motor with single pump |
9 Ton | 7 - 5 | 5 - 50 | 4 | 150 |
| NB: Some data might not correspond to the catalogue and price list in force. | |||||
