SPLITTING HEIGHT105 CMADJUSTABLE |
 |
SPLITTING LENGHT65 CMADJUSTABLE |
 |
SPLITTING FORCE13-18 TONAT CHOICE |
The considered choice for working independently everywhere!

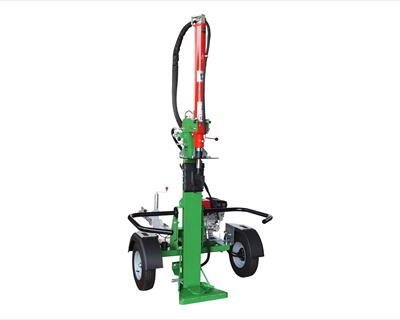

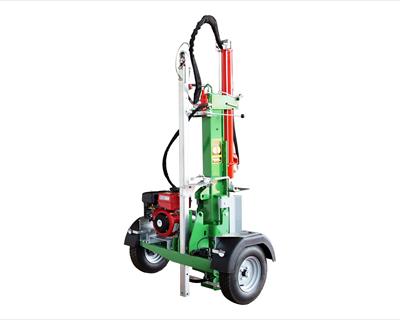

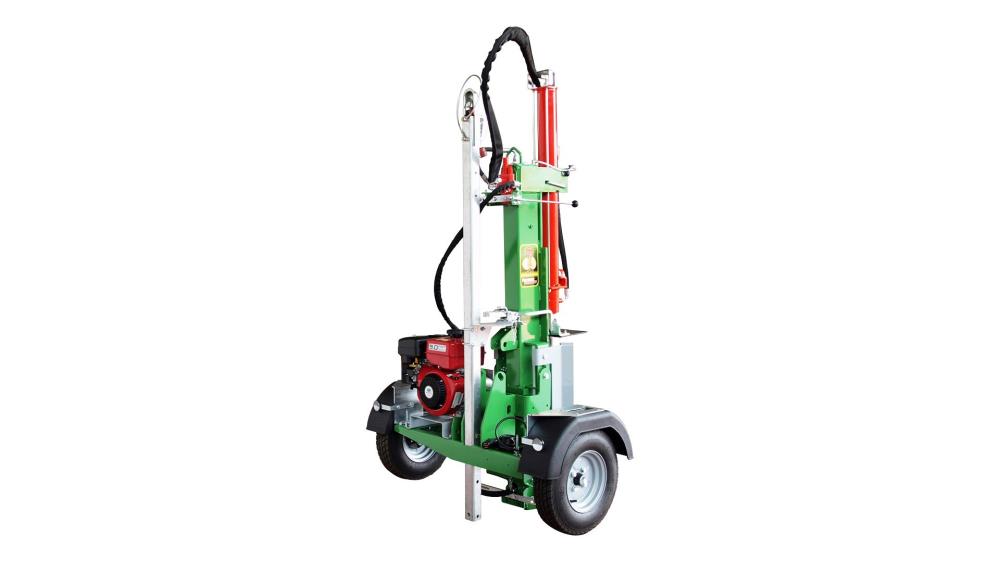

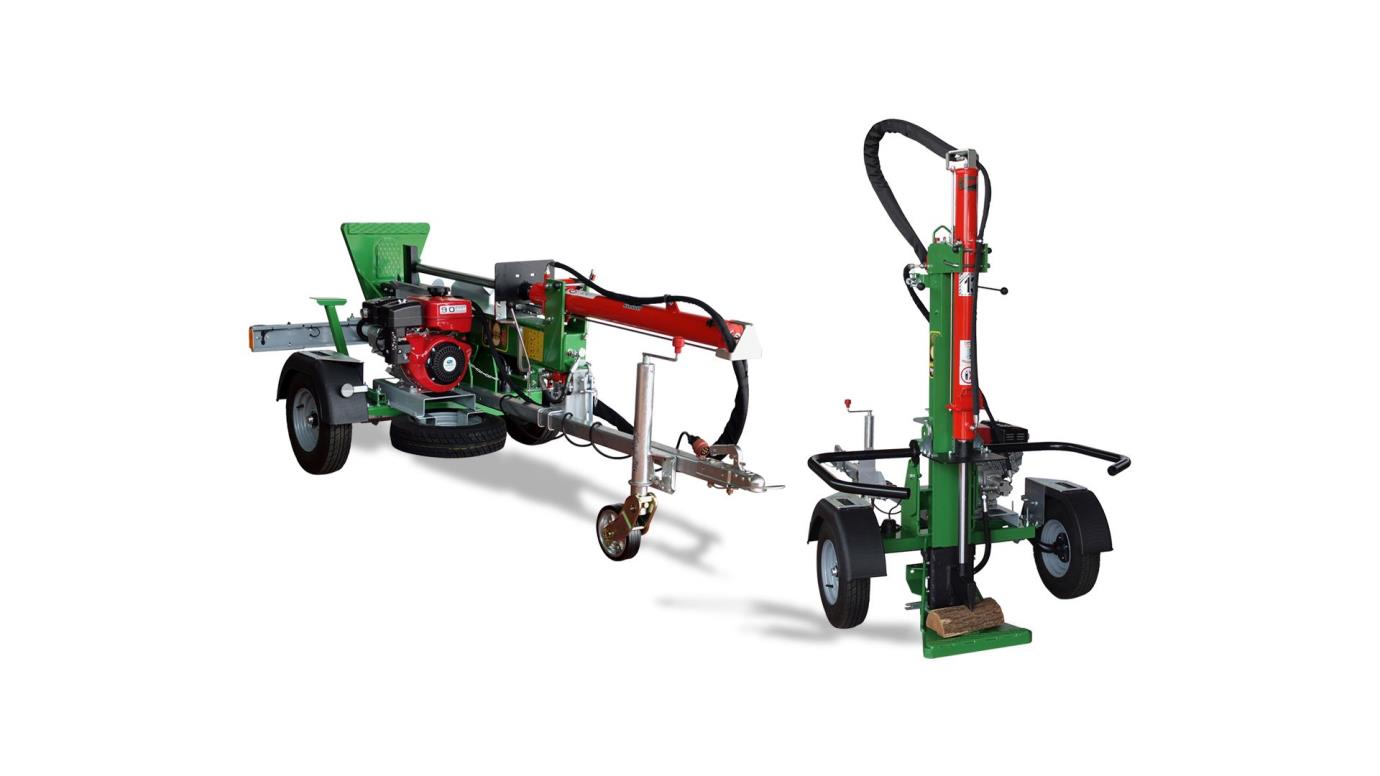

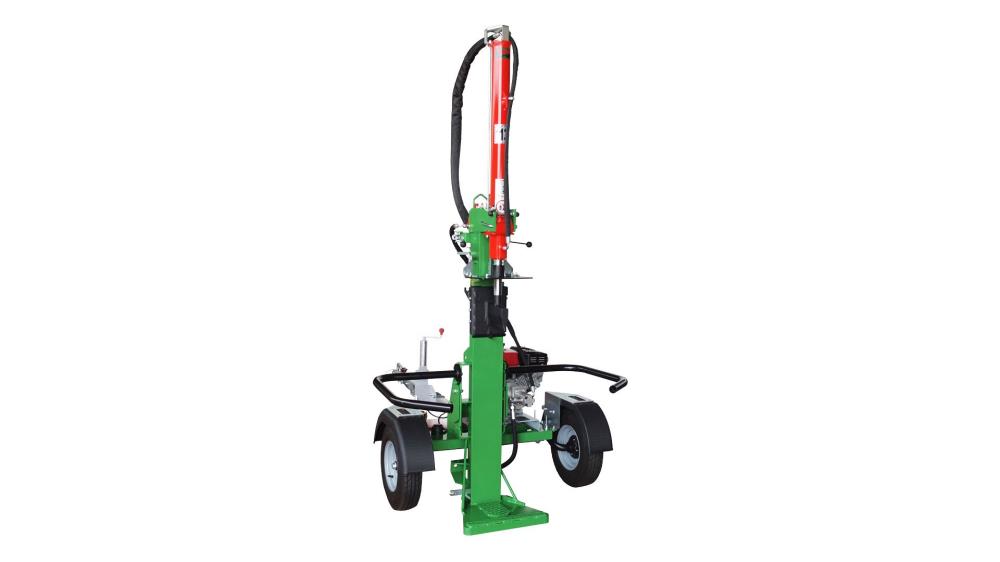

Hydraulic log splitters, towed and approved for road transport, with vertical and horizontal working position.
They split difficult logs of big dimensions up to about 80-90 cm dia.

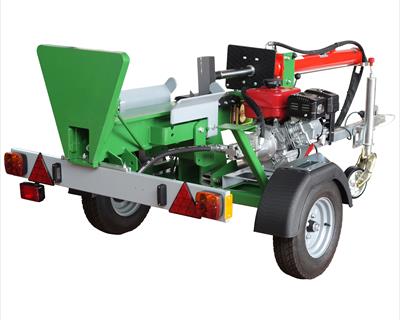

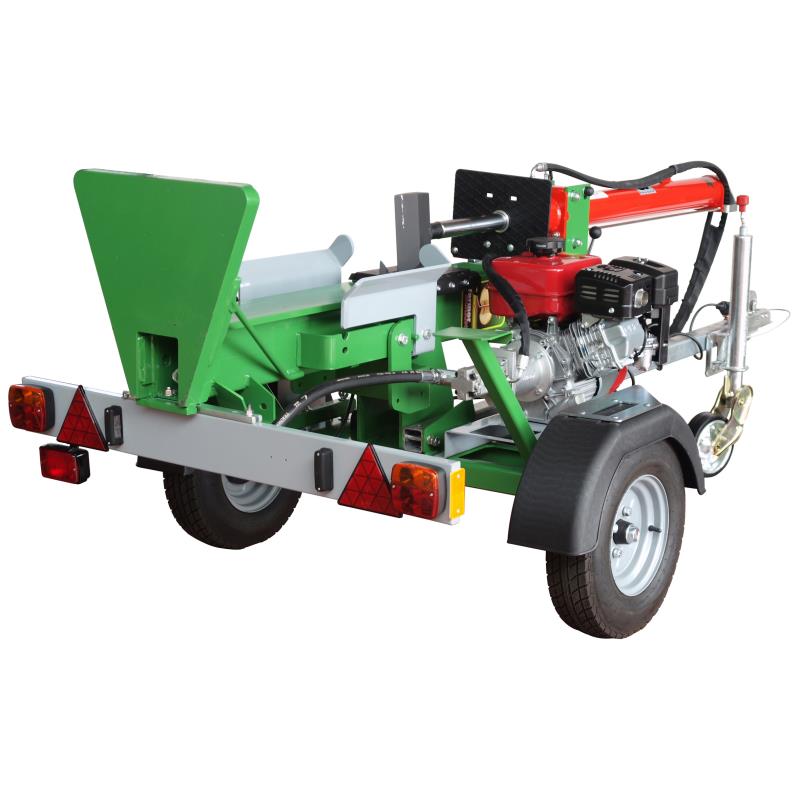

They are equipped with a tow hook for a 50 dia. sphere, lights and indicators for road transport, axle with elastic suspensions.
Features |
|---|
Double levers control for splitting operations. |
The log centering in vertical position occurs through a fixed bit welded onto the cutter guide, whereas in horizontal position it occurs through the two elastic lateral guides. |
The double cutting speed "SPEEDandPOWER" considerably increases the working speed. |
Max speed: 100 km/h. For the maximum speed please refer to the highway code of the countries in question. |
The spare tire (optional) helps the user in an emergency on way. |
The cutter guides are in Teflon and Ertalon, self-lubricating and easily interchangeable. |
Handling occurs exclusively by towing. |
Available versions |
|
|---|---|

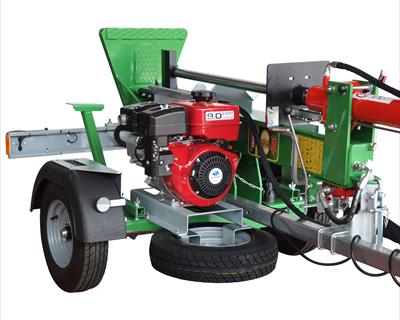

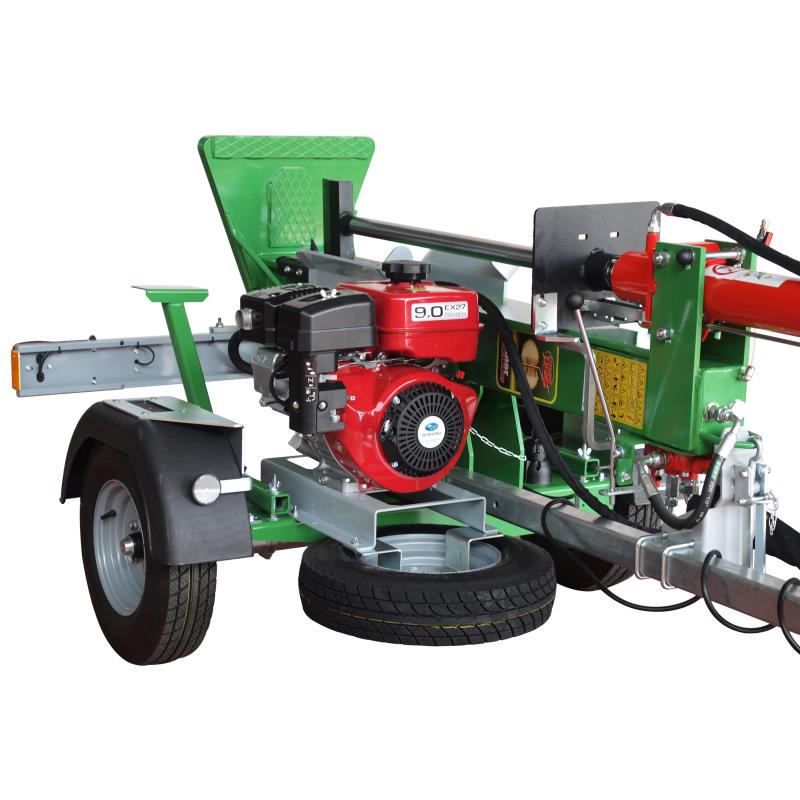

VS petrol engine with double pump |
|

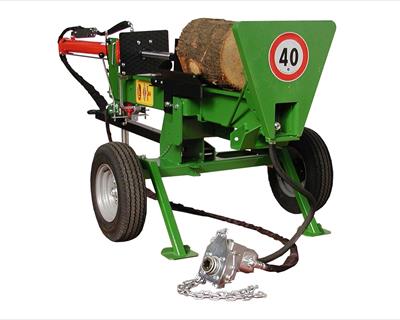

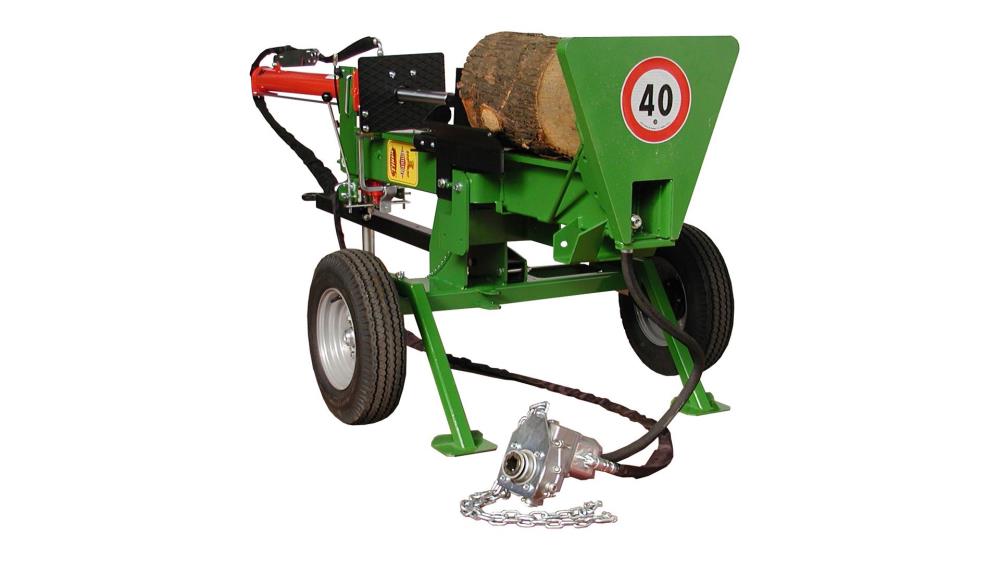

HVP for tractor with detached PTO pump 540 rpm (upon request) |
|
VSD diesel engine with double pump (upon request) |
Accessories Find out which accessories fit on the different Farmer Multiuse models
 |
 |
 |
 |
 |
60° Cutter |
Cross cutter |
Lifting hook |
Spare tire |
Board with extensions |
| Model | Splitting force | Power required Hp - kW |
Splitting dia. capacity cm min - max |
Splitting speed cm/sec |
Total weight (kg) |
|---|---|---|---|---|---|
| 37.M.HVP HVP for tractor with detached PTO pump 540 rpm |
13 Ton | 24 - 18 | 10 - 80 | 10,5 - 34 | 378 |
| 37.M.VS.10.PD VS petrol with double pump |
13 Ton | 9 - 6,7 | 10 - 80 | 8 - 25 | 440 |
| 39.M.HVP HVP for tractor with detached PTO pump 540 rpm |
18 Ton | 24 - 18 | 10 - 90 | 8,5 - 19 | 435 |
| 39.M.VS.13.PD VS petrol with double pump |
18 Ton | 13 - 9,55 | 10 - 90 | 6,3 - 14,1 | 465 |
| Note: Some data might not correspond to the catalogue and price list in force. | |||||
