Tandem

Saw Bench

For industrial and agricultural use with conveyor belt

The Tandem is built on the power and reliability of the Katana 750, enhanced by the practicality of an integrated conveyor belt. It is a professional saw bench designed for agricultural and industrial use, ideal for users looking to optimize time and reduce physical effort during wood cutting and handling operations.

Advantages that make the difference:
  • Integrated conveyor belt, facilitating the collection and transfer of cut logs.
  • Powerful and precise cutting, with a maximum cutting depth of 30 cm, identical to that of the Katana 750.
  • Reinforced structure, designed for continuous operation in demanding working environments.
  • More efficient workflow management, thanks to the combined cutting and transport system.

The Tandem is the ideal solution for those seeking a complete and professional saw bench, capable of combining high performance and maximum productivity in a single machine.

Download the technical data sheet

Technical features

  • Three exclusive THOR systems: safety cover, release lever, emergency braking device
  • Moving and positioning are ensured by a 3-point connector (Category 1–2) on all models, or alternatively by a lifting hook.
  • Cut adjuster and discharge for the conveyor belt.

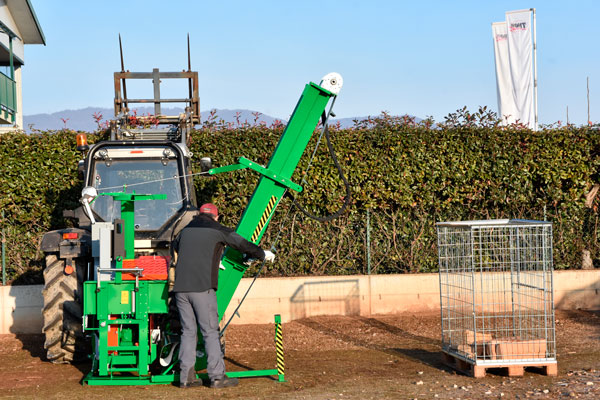

Tandem Thor Italy - posizionamento macchina per lavoro

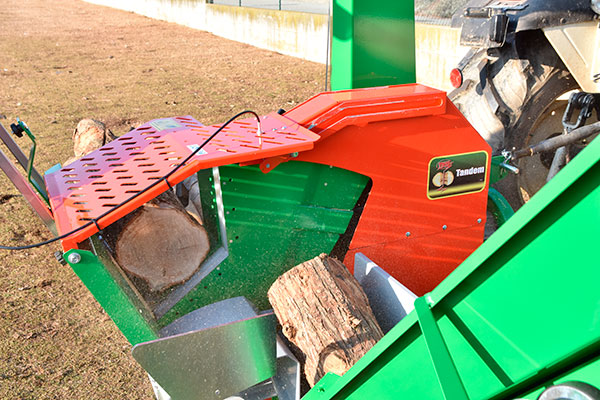

Tandem Thor Italy - taglio del ceppo

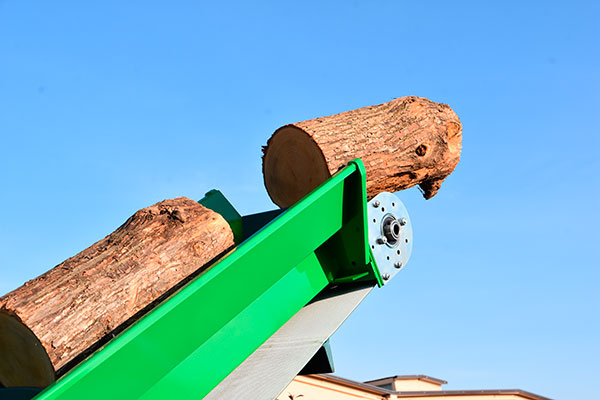

Tandem Thor Italy - nastro trasportatore

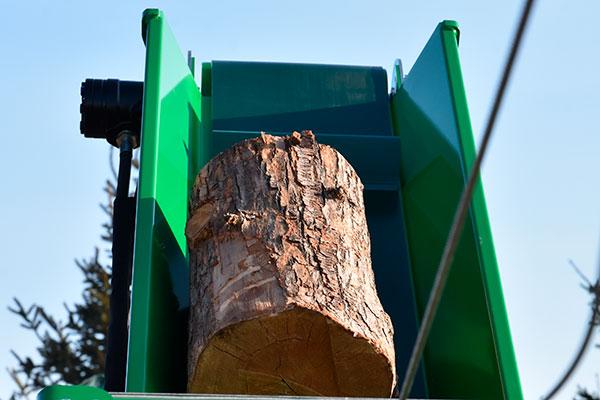

Tandem Thor Italy - ceppo sezionato

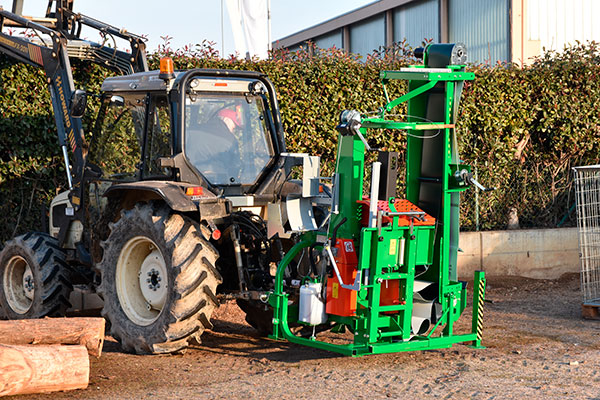

Tandem Thor Italy - macchina pronta all'uso

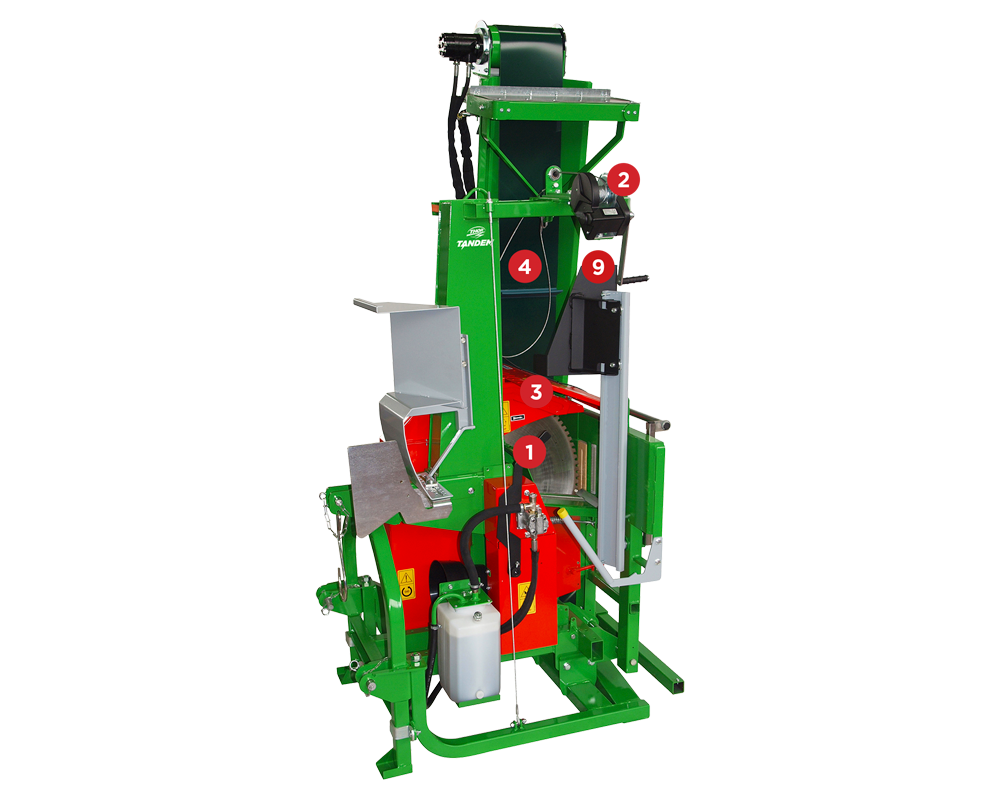

Tandem - pompa PTO fissa
  • 1
    Emergency braking device for models (exclusive THOR system)
  • 2
    Manual winch for positioning the conveyor belt
  • 3
    Safety cover of the cutting area (exclusive THOR system)
  • 4
    Hydraulic conveyor belt
  • 5
    Belt extraction by manual winch
  • 6
    Stabilizing foot, retractable for storage
  • 7
    Lever for unlocking bench movement (exclusive THOR system)
  • 8
    Handle height adjustment for the action of the bench
  • 9
    Side feed mounted on bearings, with vertical rest position for transport

Select the thumbnail to view the enlarged image a little further down

Tandem - pompa PTO fissa Tandem - Elettrico Tandem - Kombi

VPF - EL - KOMBI

Max

Max

ø 30 cm

ø 750 mm

View the technical data sheet

MODEL Tandem
Max. cutting diameter ø 30 cm
Widiasawblade hole 30 mm dia. included ø 750 mm
Blade revs (rpm) 1400
Conveyor belt 4 m 5 m
Width x Length 0,25 x 3,70 m 0,25 x 4,70 m
Max. discharge height at 45° 2,40 m ~ 3,10 m ~
ITEM No. K76.101 K76.111 K76.113 K76.114
Power supply saw benches and belt:
EL = electric (S6), V.PF = tractor, Kombi
V.PF
540 rpm
V.PF
540 rpm
EL
400 Volt
Kombi
(EL + V.PF)
Power required (HP/kW) 25 / 18 25 / 18 12 / 9 7,5 / 5,5 - 25 / 18
Blade stopping brake
3-point connector 1st - 2nd cat.
Cut adjuster and discharge conveyor for conveyor belt
Side foldable logs feed
Transport height with closed belt (m) 2,50
Working dimensions
(W x L x H cm) - With belt at 45°
170 x 450 x 250 170 x 450 x 310
Weight 500 530 540 580
OPTIONAL ACCESSORIES Cardan shaft with safety bolt speed adjuster for belt Transport position

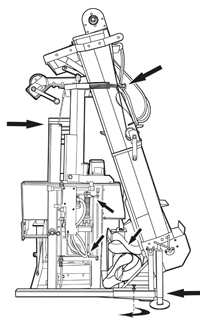

Transport position
Description Cardan shaft with safety bolt Speed adjuster for belt
Item No. 600.125 853.033.K
Tractor (V.PF) * *
Electric *
Not available
Included as standard
*
Optional
