Magik

Vertical hydraulic log splitter

For agricultural and forestry use

The Magik is a compact and easy-to-handle log splitter, designed to deliver high performance in a practical and robust machine. Clean in design yet powerful and unmatched in efficiency, it is available in 13 ton, 18 ton and 20 ton.

The advantages that make the difference:

System-LEADER control with dual operating levers for precise log centering and safe splitting.
Side hoist included to facilitate log positioning.
Compact and reinforced structure, ideal for frequent agricultural and forestry use.
Equipped with advanced technologies and numerous optional features typical of the Top Line Family range.

The Magik is the perfect choice for agricultural and forestry companies and operators seeking a reliable, powerful, and technologically advanced product.

Download the technical data sheet

Technical features

Interchangeable self-lubricating Teflon sliding guides.
Equipped with a side hoist to reduce manual effort.
3-point connector, Category 1-2 for tractor models.

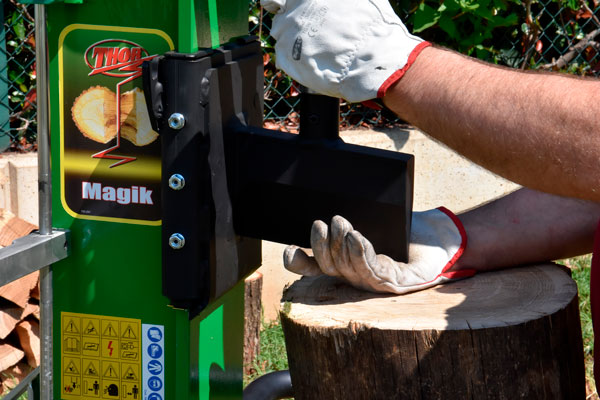

Special steel splitting knife with angled cutting edge for greater penetration and reduced effort.

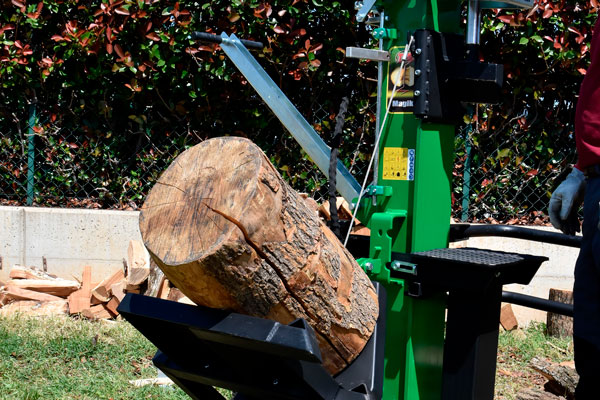

Wide base for ergonomic support of the log to be split.

Sensor for blocking the hydraulic flow.
Aluminium cutter stroke adjustment, easily adjustable to the desired height.

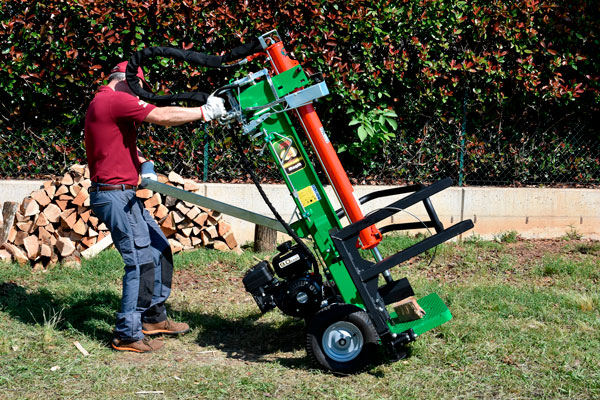

Magik, Thor Italy - durante fase di trasporto

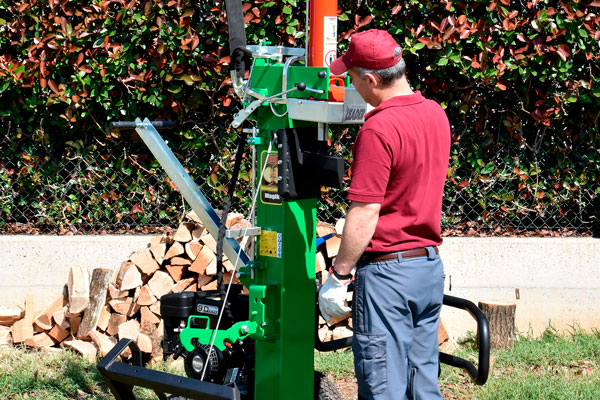

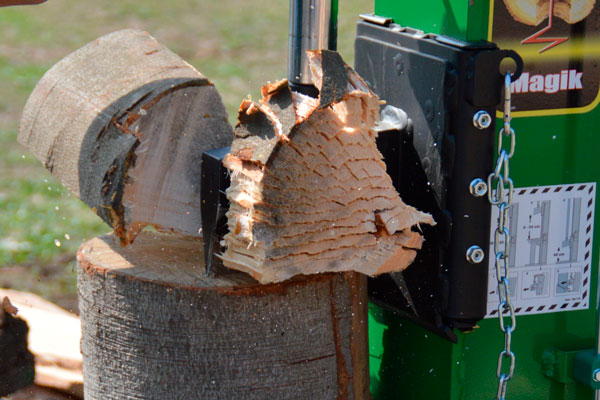

Magik, Thor Italy - durante fase di taglio

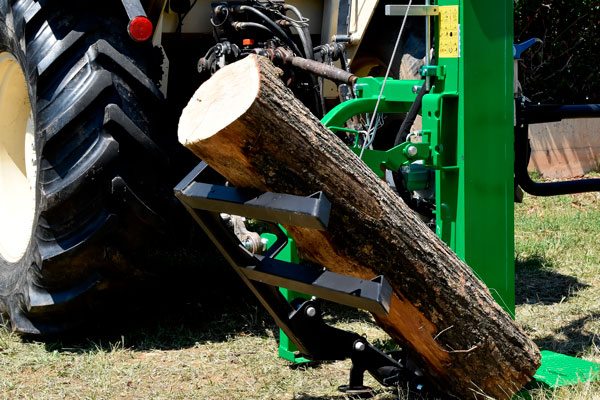

Magik, Thor Italy - sollevatore laterale

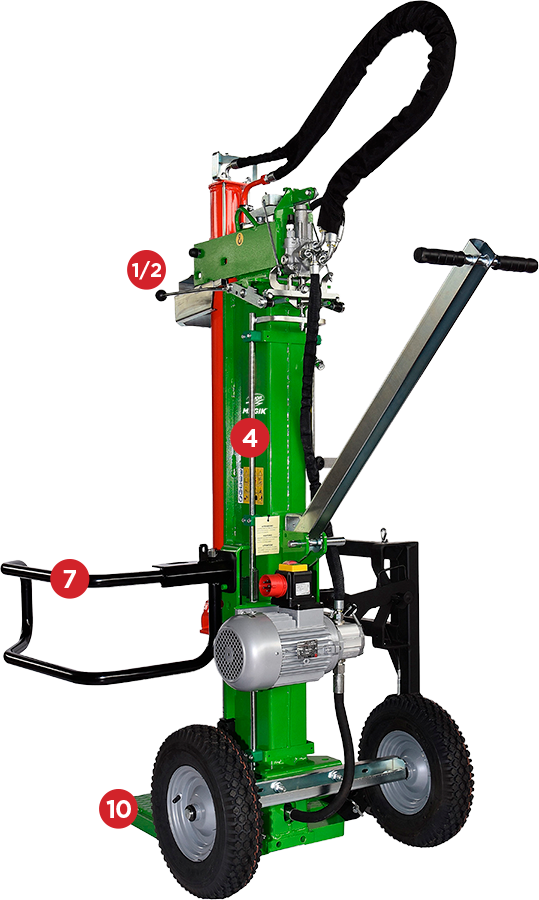

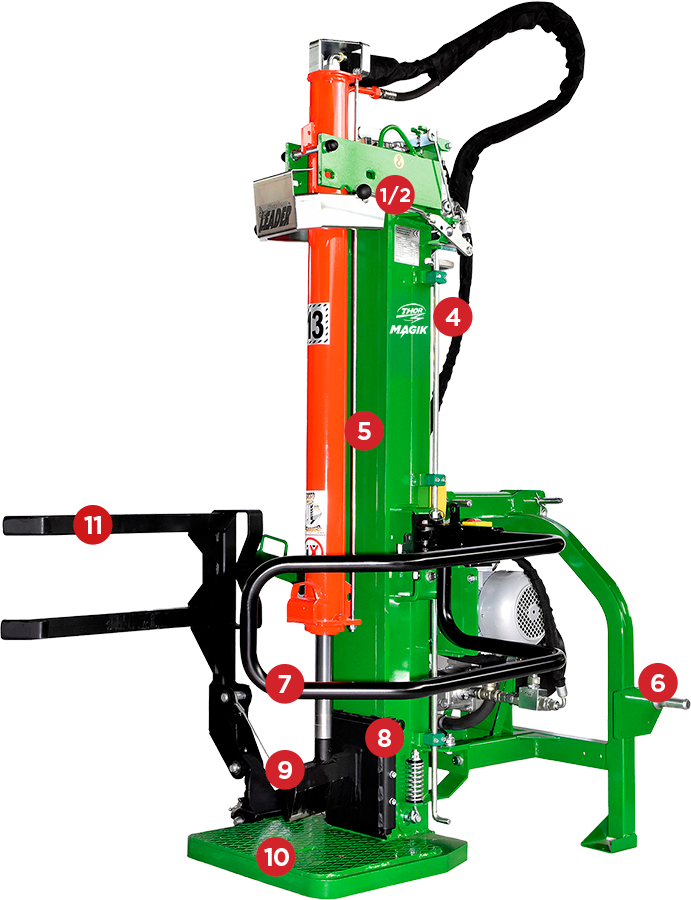

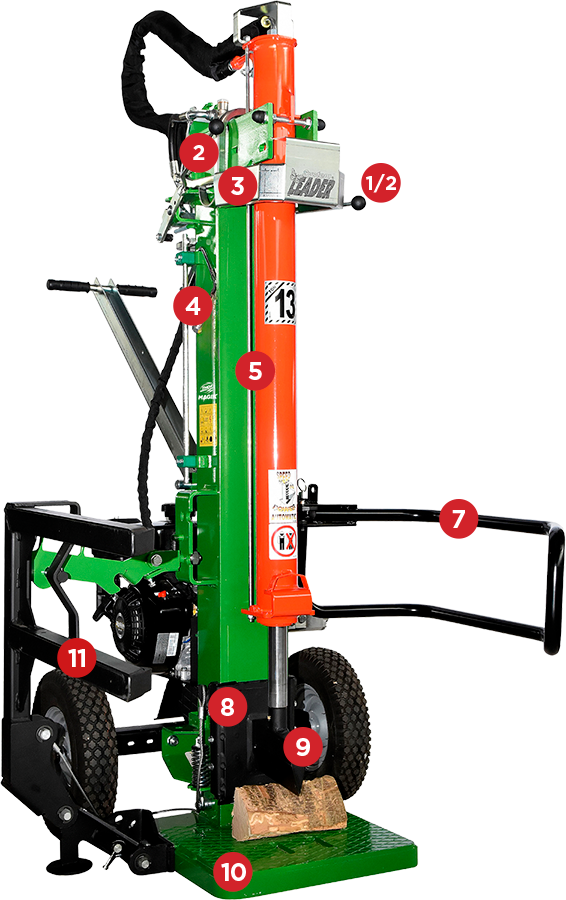

1

Single control for log centering - System-LEADER
2

Two ergonomically positioned levers
3

Sensor
4

Cutter stroke adjustment
5

Retractable hydraulic cylinder for easy transport and storage. H = 190 cm
6

3-point connector, Category 1-2 for V.PF and KOMBI models
7

Double side protection, with integrated lifting hook support, foldable at the end of work
8

Guides
9

Cutter
10

Wide, ergonomic base
11

Side hoist, foldable at the end of work

Select the thumbnail to view the enlarged image a little further down

KOMBI - VPF - EL - VS

Max

124cm

Min - Max

5 cm - 90 cm

View the technical data sheet

ITEM No.	34.101	34.102	34.103	34.104	34.105	34.106	36.101	36.102	36.104	36.103	36.110
Model	Magik
Splitting height / Cutter stroke	124 cm / 114 cm (adjustable)
Hydraulic oil tank	22 lt						23 lt				38 lt
Splitting force	13 ton						18 ton				20 ton
Controls as standard
Power supply EL = electric, V.PF = tractor, VS = gasoline KOMBI = EL + V.PF	V.PF 540 rpm	EL 230 Volt	EL 400 Volt	VS 3200 rpm	KOMBI EL 230V + V.PF	KOMBI EL 400V + V.PF	V.PF 540 rpm	EL 400 Volt	VS 3200 rpm	KOMBI EL 400V + V.PF	V.PF 540 rpm
Power required (HP/kW)	22 / 16	3 / 2,2	5,5 / 4	9 / 6,7	3 / 2,2 - 22 / 16	5,5 / 4 - 22 / 16	24 / 18	7,5 / 5,5	13 / 9,55	7,5 / 5,5 - 24 / 18	27 / 20
Working pressure (bar) PD = double pump	260	250 / PD	250	250 / PD	250 / PD x EL	250	280	280 / PD	280 / PD	280 / PD x EL	315
1ª cutting speed (cm/sec)	9	7	6	8	7 - 6	6 - 6	7	6,6	6	6,6 - 7	7
2ª cutting speed (cm/sec)	28	22	19	25	22 - 18	19 - 18	16	15	14	15 - 16	16
Return speed (cm/sec)	13	10	9	11,5	10 - 8,5	9 - 8,5	13	12	11	12 - 13	13
Rotation speed in rpm	450	2800	1400	3200	2800 - 450	1400 - 450	450	1400	3200	1400 - 450	450
Wheels(ø mm) F = full, PN = pneumatic	250 F *	400 PN ■	400 PN ■	400 PN ■	250 F *	250 F *	250 F *	500 PN ■	500 PN ■	250 F *	▫
3-point connector 1^st - 2^nd cat.	■	▫	▫	▫	■	■	■	▫	▫	■	■
Working dimensions (A x B / H = 295 cm)	115 x 125	115 x 100	115 x 100	115 x 130	115 x 125	115 x 125	115 x 125	115 x 120	115 x 130	115 x 125	115 x 125
Weight (kg)	380	368	368	388	408	408	414	450	455	465	447
