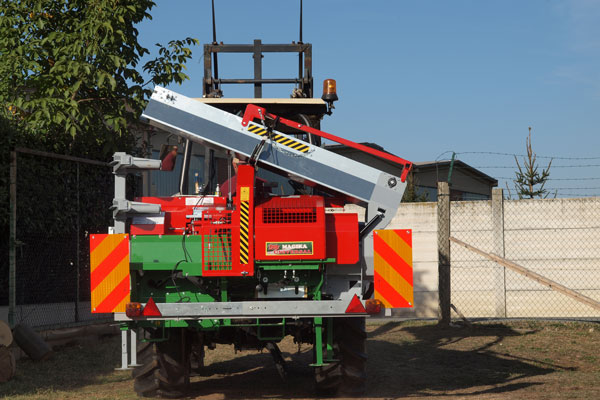

Magika Universal
12 ton

Combination machine

One machine for three different tasks!

The Magika Universal 12 ton is a combination machine that integrates cutting and splitting of wood in one versatile and configurable solution. Designed for semi-professional use, it is ideal for operators seeking operational flexibility and the ability to adapt the machine to different working environments.

The advantages that make the difference:

Available in electric, tractor, and gasoline engine versions to meet every operational requirement.

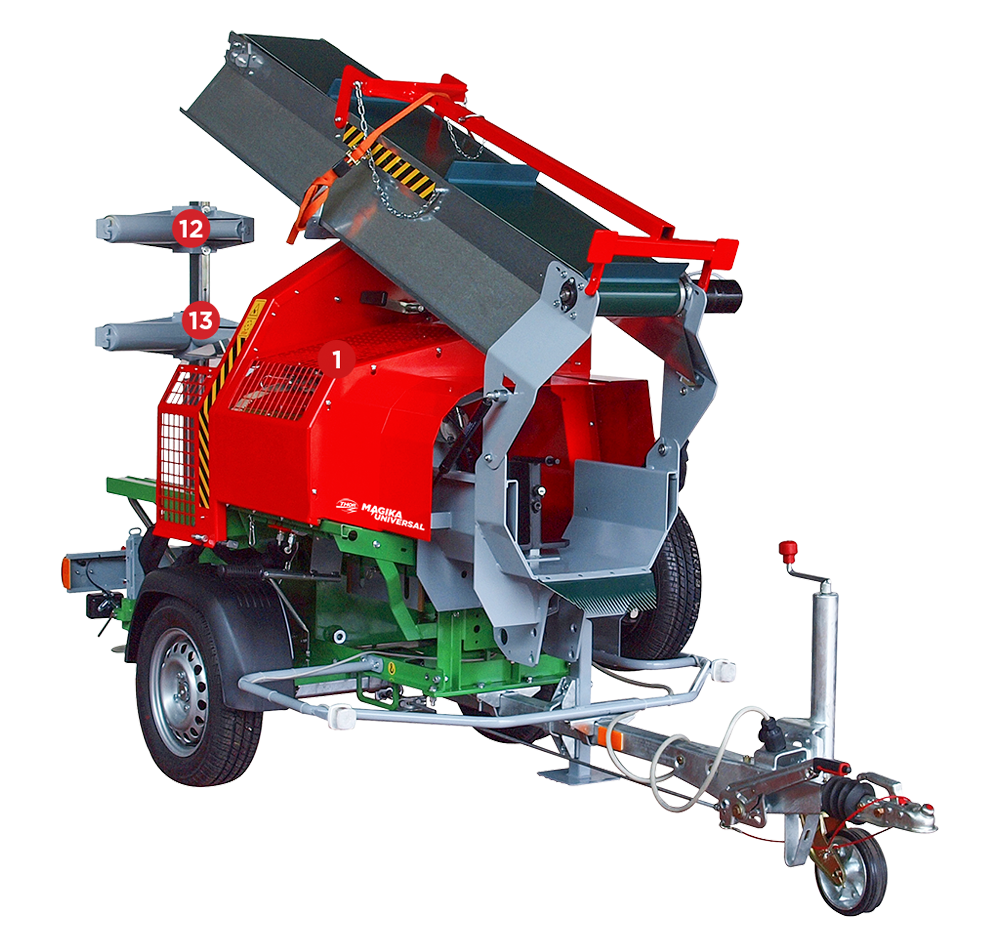

Road version MAGIKA ROAD, equipped with ball coupling and dedicated chassis for quick relocation and maximum operational autonomy.
Standard support rollers ø 60–90 on the log support bar to facilitate log positioning before cutting.

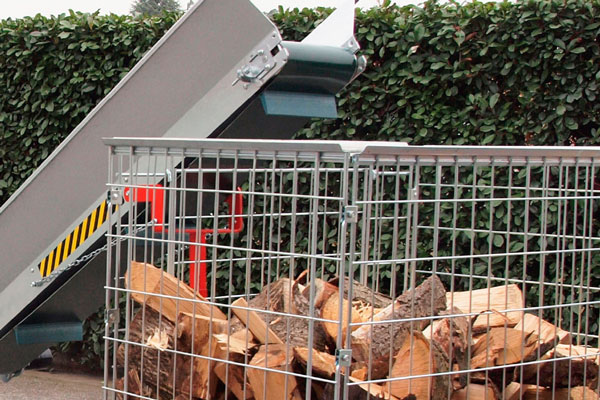

Configurable discharge systems with either vibrating extension or hydraulic conveyor belts of different lengths to optimize log handling after cutting and splitting.

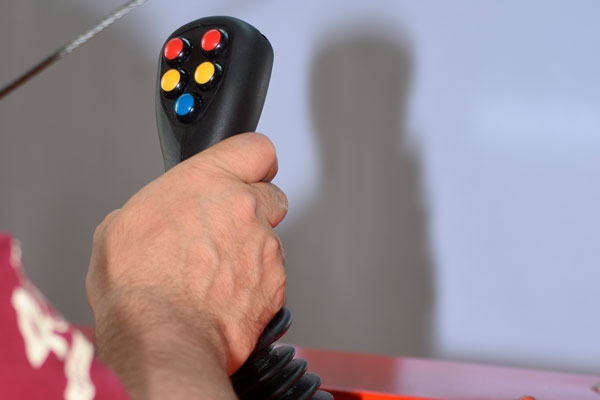

Simple and reliable manual controls, with optional joystick control on tractor and Kombi versions.

Technical features
(manual control version)

Front-positioned manual controls, easily accessible for operating the hydraulic functions (manual control version only, no joystick).

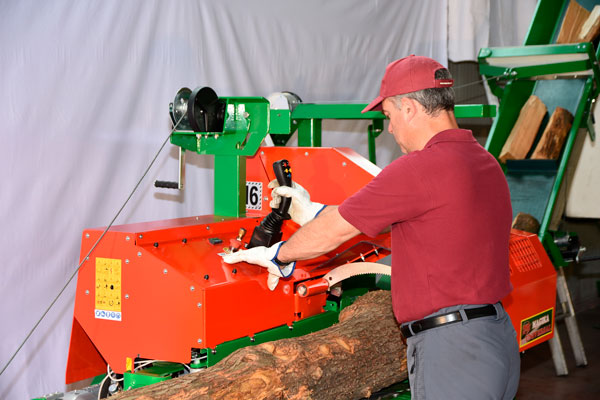

Lever for the control of the chainsaw bar.
Lever for opening the sliding protection cover.
Extension with vibrating sieve extension operated via manual controls.
Handle for tilting the logs into the splitting channel, positioned under the splitting table.

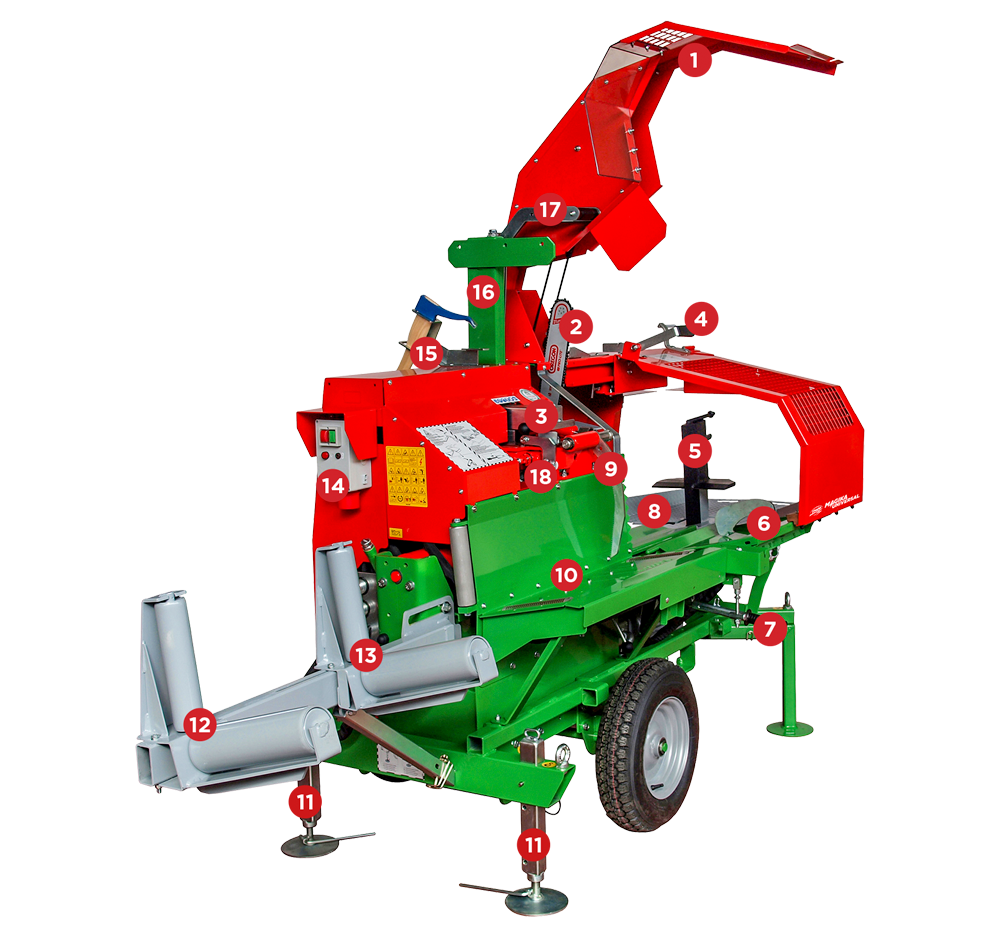

1

Carter for covering the chainsaw bar
2

16” (40 cm) chainsaw bar and chain 3,25” x 68 links
3

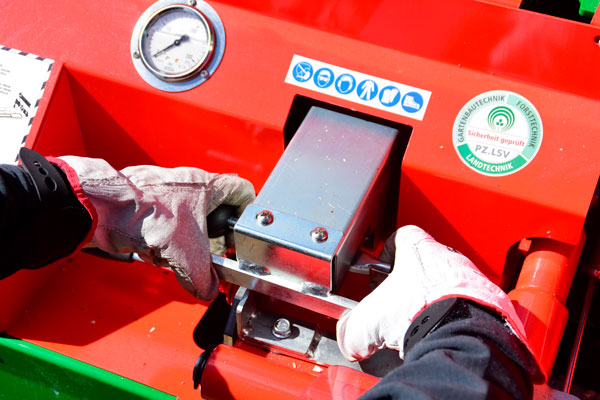

Two-hand control for the log splitter
4

Opening handle for the sliding protection cover
5

2–4 parts splitting knife (optional knife for 2–6 parts)
6

Setting and checking of the cutting length: 25 / 30 / 33 / 40 / 50 cm
7

Handle for manual operation of the rocker plate for tilting the logs into the splitting channel
8

Vibrating rear extension for removal of splinters and wood residues
9

Hydraulic clamp for log fixing during cutting
10

Cutting table with infeed rollers for easy handling of the logs
11

Adjustable support foot
12

Additional pair of rollers ø 60–90 (Optional)
13

Log support bar with a pair of rollers ø 60–90
14

Electrical switch with phase change and emergency button (for electric version)
15

Lifting hook with support (Optional)
16

Chain lubrication oil tank integrated in the machine frame (filling point and level dipstick) and centering support for the folded conveyor belt
17

Manual control lever for the chainsaw bar
18

Hydraulic control lever for chainsaw bar feed
