Magika Universal
16 - 18 ton

Combination machine

One single machine for three different operations!

The Magika Universal 16/18 ton is the most powerful and complete version in the range, designed for professional and intensive use in the forestry sector. Developed for operators handling large volumes of wood, it combines high cutting and splitting performance with a comprehensive standard technical equipment package designed to maximize productivity, control, and reliability.

Advantages that make the difference
  • Robust and reliable manual controls for lowering the chainsaw bar and advancing the log splitter, with optional joystick control.
  • Available in electric, tractor, Kombi, and gasoline engine versions to ensure the best choice for every application.

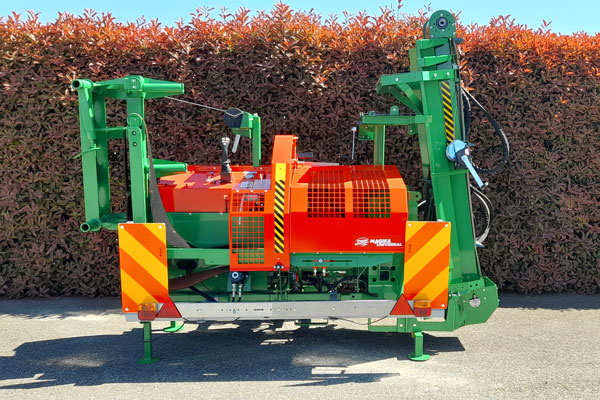

  • Road version MAGIKA ROAD (16 ton), equipped with ball coupling, overrun brake, axle with elastic suspension, and removable rear light bar, allowing quick transport and complete independence.

Technical features

  • Standard foldable hydraulic infeed conveyor with belt for log handling before cutting
  • Hydraulic tilting table for automatic rollover of the logs to be split into the splitting channel
  • Hydraulic knife adjustment for quick adaptation to different processing requirements
  • Standard digital hour counter for precise monitoring of machine usage
  • Configurable discharge systems with vibrating extension or hydraulic conveyor belts in various lengths
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16/18 ton, Thor Italy
Magika Universal 16 ton - Kombi + Joystick
  • 1
    Manual winch for positioning of the foldable infeed conveyor
    (before cutting)
  • 2
    Chain lubrication oil tank integrated in the machine frame (filling point and level dipstick) and centering support for the folded conveyor belt
  • 3
    Manual control lever for the chainsaw
  • 4
    Manual winch for positioning of the discharging conveyor (for unloading the split wood)
  • 5
    Opening handle for the sliding protection
    (wood splitter cover)
  • 6
    Hydraulic conveyor belt
    (foldable for transport)
  • 7

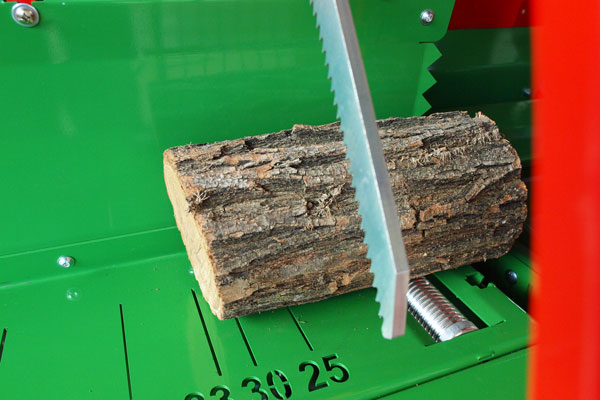

    Setting and checking of the cutting length cm 25-30-33-40-50
  • 8
    Lever for hydraulic knife position adjustment (2–4 or 2–6 splits)
  • 9
    Carter for covering the chainsaw bar
  • 10
    Log support table for cutting process
  • 11
    Hydraulic oil tank
  • 12
    Hydraulic log lift (Optional)
  • 13
    Hydraulic infeed conveyor with belt + rollers
    (foldable for transport)
  • 14
    Hydraulic control lever for log infeeding, chainsaw and clamp
  • 15
    Two-hand control for the log splitter
  • 16
    Pressure gauge for monitoring the pressure in the hydraulic system
  • 17
    Joystick

Select the thumbnail to view the enlarged image a little further down

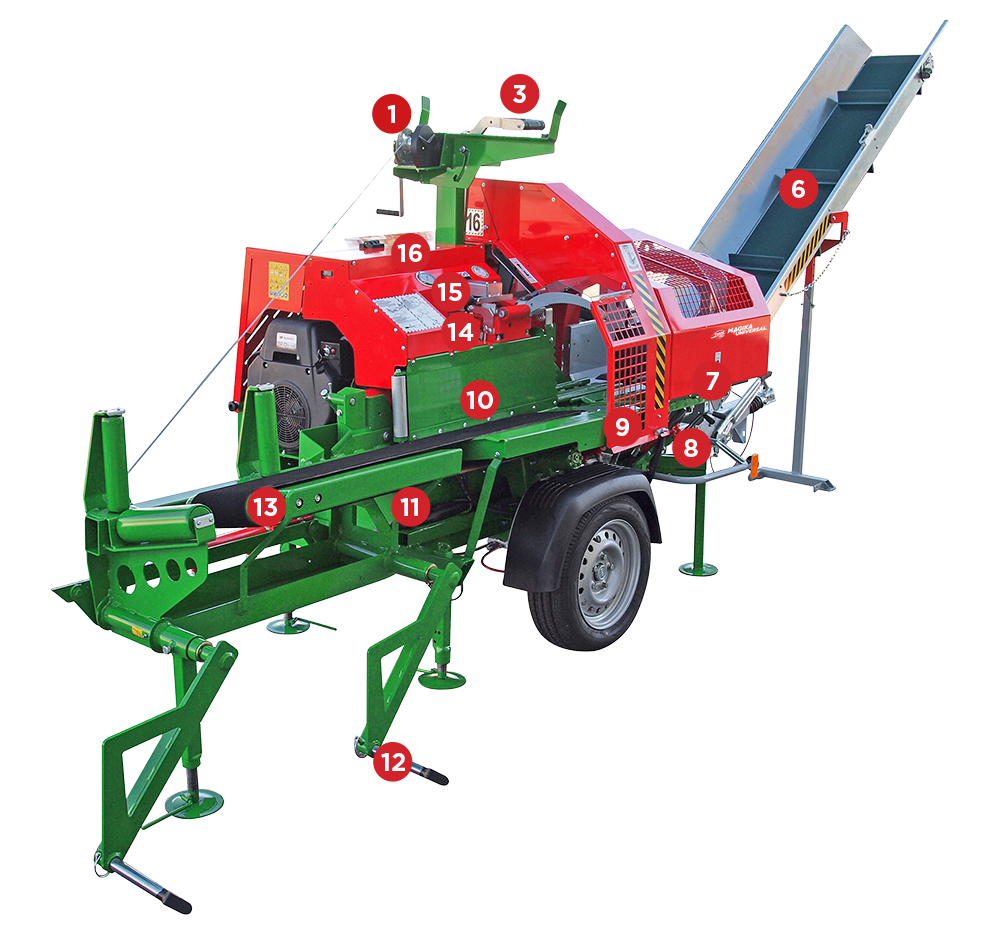

Magika Universal 16 ton - Kombi + Joystick Magika Universal 16 ton - VS(Road) Magika Universal 18 ton - V.PF

Kombi - VS(Road) - VPF
