Mignon

Vertical hydraulic log splitter

A choice of quality and prestige

The Mignon is a powerful and precise vertical log splitter , designed to handle even the largest and toughest logs with ease. Thanks to the System-LEADER foot control, it ensures comfortable and safe centering during every cutting phase.

The benefits are immediate and concrete:
  • High splitting force: available in 9 ton and 11 ton.
  • Exceptional performance even on large-diameter logs.
  • Reliability and power that stand out from the competition.

Solid, efficient, and ready to use — ideal for those who want fast results without compromise.

Download the technical data sheet

Technical features

  • Ergonomically positioned and comfortable dual-control levers for splitting phase.
  • Curved board for the logs for greater splitting performance.
  • The cutter guides are made of long-lasting Ertalon.
  • Suitable for cutting large-diameter log
  • Compact structure, easy to handle

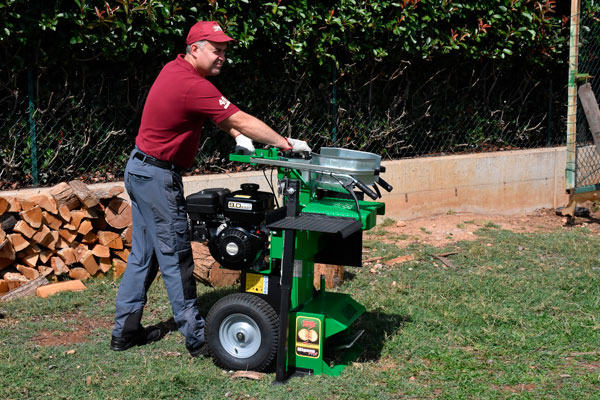

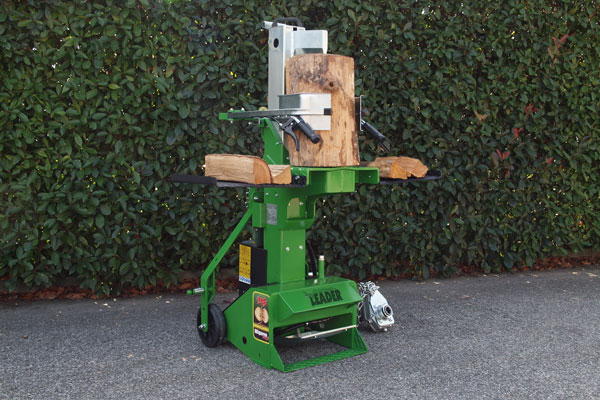

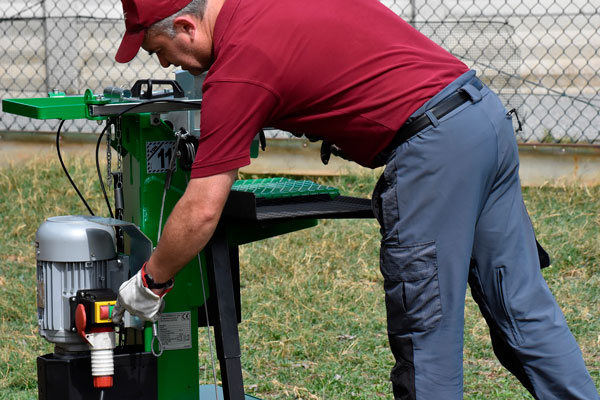

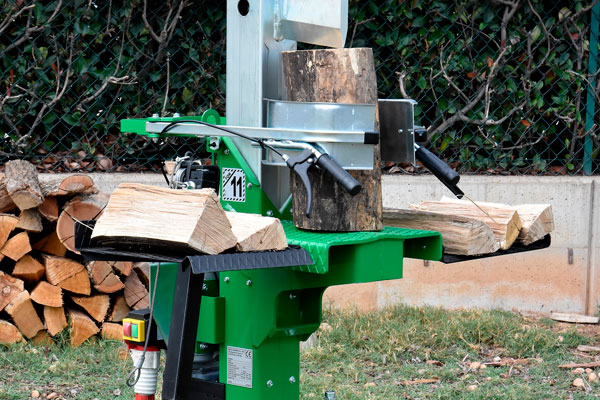

Mignon, Thor Italy
Mignon, Thor Italy
Mignon, Thor Italy
Mignon, Thor Italy

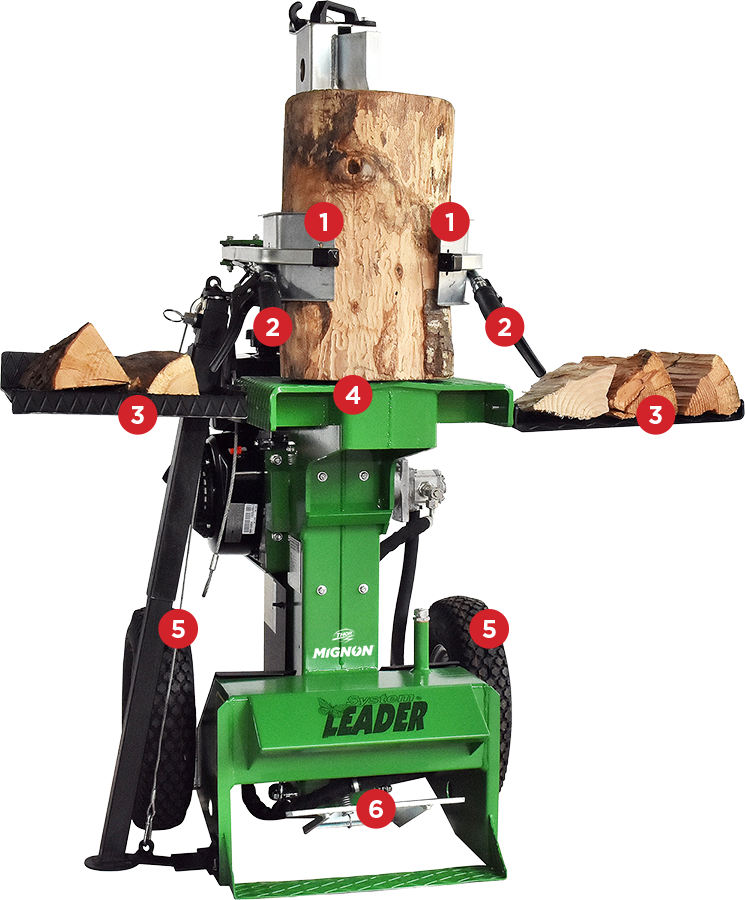

Mignon - motore elettrico
  • 1
    Dual fall arrest guards INCLUDED
  • 2
    Ergonomic dual manual controls
  • 3
    Extensions on both sides INCLUDED
  • 4
    Curved board for the logs for greater splitting performance
  • 5
    Wheels of big dimensions as standard on some models (see table)
  • 6
    Approved pedal (standard) for the approach stroke and log centering

Select the thumbnail to view the enlarged image a little further down

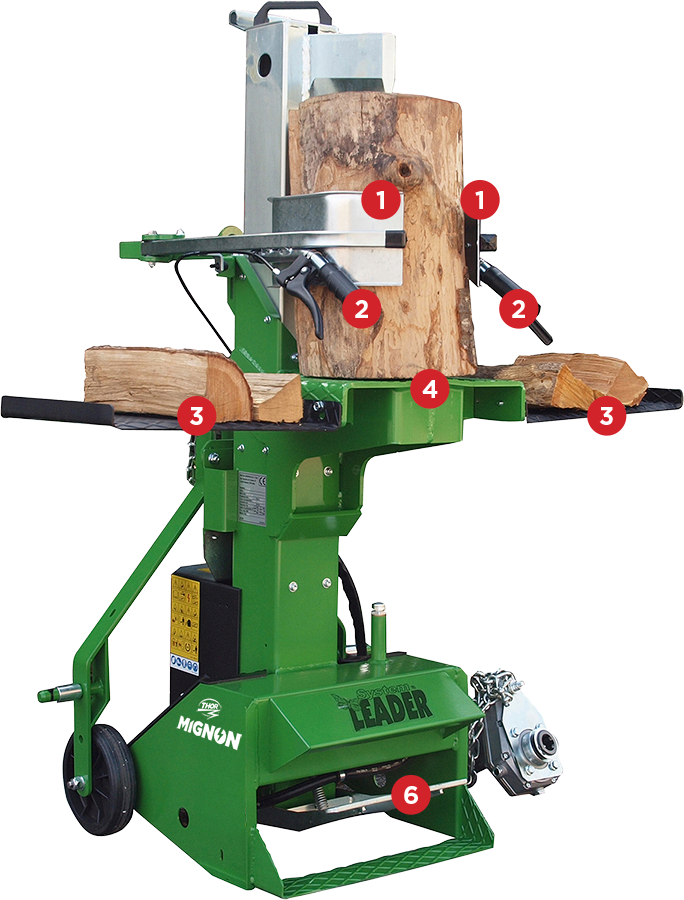

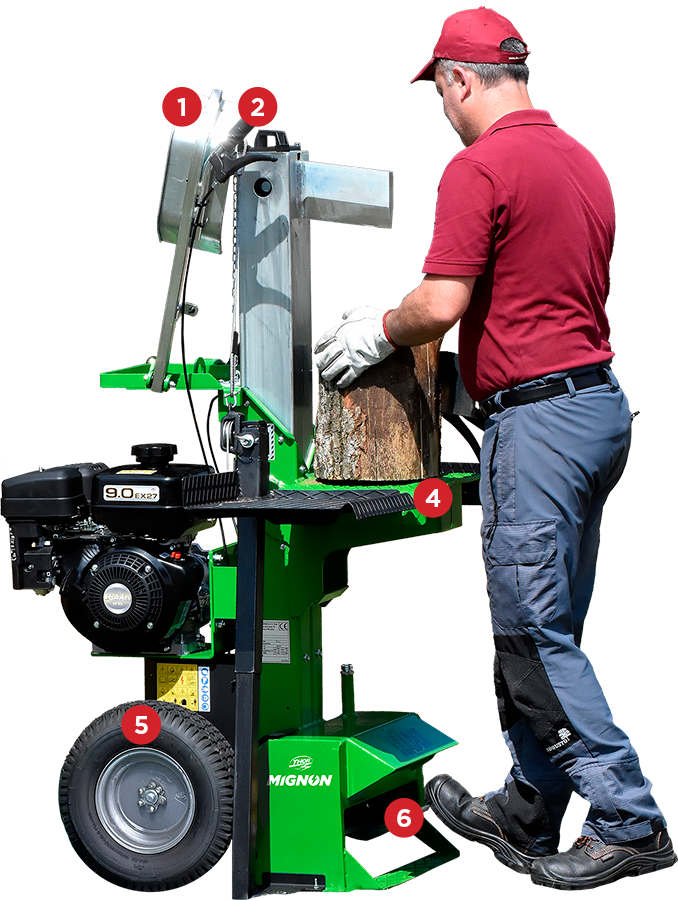

Mignon - motore elettrico Mignon - motore a benzina Mignon - pompa staccata

EL - VS - HVP

Max

Max

54cm
Max

Max

60cm

View the technical data sheet

Model Mignon Eco Mignon Prof
Splitting force 9 ton 11 ton
Adjustable cutter stroke 50 cm 50 cm
ø Min. - Max. splitting diameter 5 - 50 cm 5 - 60 cm
Lateral log support extensions
Fall arrest guards
Hydraulic oil tank 8,75 lt 9 lt 9 lt
Controls as standard System Leader System Leader
ITEM No. 23.100 23.101 23.102 23.110 23.111 23.112 23.113 23.115
Power supply
EL = electric, HVP = tractor, VS = gasoline
KOMBI = Fixed pump + electric
EL
230 Volt
EL
400 Volt
VS
3200 rpm
EL
230 Volt
EL
400 Volt
VS
3200 rpm
HVP
540 rpm
KOMBI
EL 400 V + HVP
Power required (HP/kW) 3 / 2,2 4 / 3 7 / 5 3 / 2,2 5,5 / 4 9 / 6,7 17 / 12,5 5,5 / 4 - 17 / 12,5
Working pressure (bar)
PD = double pump
250 250 250 240/PD 240 230 240 250
1ª cutting speed (cm/sec) 4 5,3 4,8 7,9 7,2 4,7 6 7,2 - 10
2ª cutting speed (cm/sec) 1,4
Return speed (cm/sec) 25 36 32 8,6 16 12,5 16 16 - 16
Full wheels (ø mm) 300 ■ 300 ■ 300 ■ 300 ■ 300 ■ * 200 ■ 200 ■
Pneumatic wheels (ø mm) * * * * * 400 ■
Working dimensions
(A x B / H = 156 cm)
125 x 80 125 x 80 125 x 90 125 x 80 125 x 80 125 x 100 125 x 75 125 x 86
Weight (kg) 153 153 160 158 158 181 155 179
OPTIONAL ACCESSORIES Tiratronchi Coltello 60° Kit ruote pneumatiche Sollevatore
Description Lifting hook 60° cutter Pneumatic wheels Side hoist
Item No. 845.201 800.113.K 810.025.K 810.039.K
All models * * * *
Not available
Included as standard
*
Optional
