Farmer Diavolik

Vertical hydraulic log splitter

For industrial and agricultural use

The Farmer Diavolik represents the evolution of the Farmer model, designed for industrial and agricultural use where power and durability are essential. Available in 22 ton, 25 ton and 30 tonversions, it handles even the largest and most demanding logs with ease, ensuring consistent and reliable performance.

The advantages that make the difference:

Reinforced structure designed to withstand intensive and continuous workloads.
Side hoist for easy log positioning.
Exceptional splitting force for superior efficiency in any setting.
Compatible with professional optional accessories to maximize productivity.

Among the available accessories are a manual or a remote-controlled winch with a pulling force of up to 400 kg and a pulley to pull from the bottom, both ideal for the safe and precise handling of heavier logs.

Download the technical data sheet

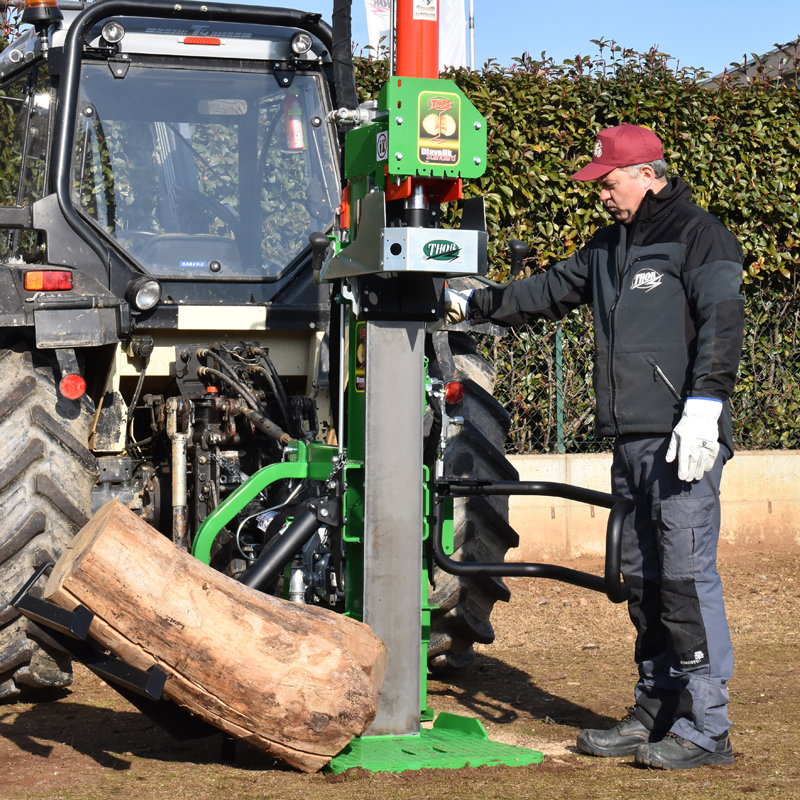

THOR Farmer Diavolik Log Splitter | Vertical Log Splitter for Agricultural and Industrial Use

Technical features

Interchangeable bolted cast-iron sliding guides.
Equipped with a side hoist to reduce manual effort.
3-point connector, Category 1-2
Tempered and high strength steel cutter.
The dual-speed SPEED and POWER AUTOMATIC system significantly increases working speed.

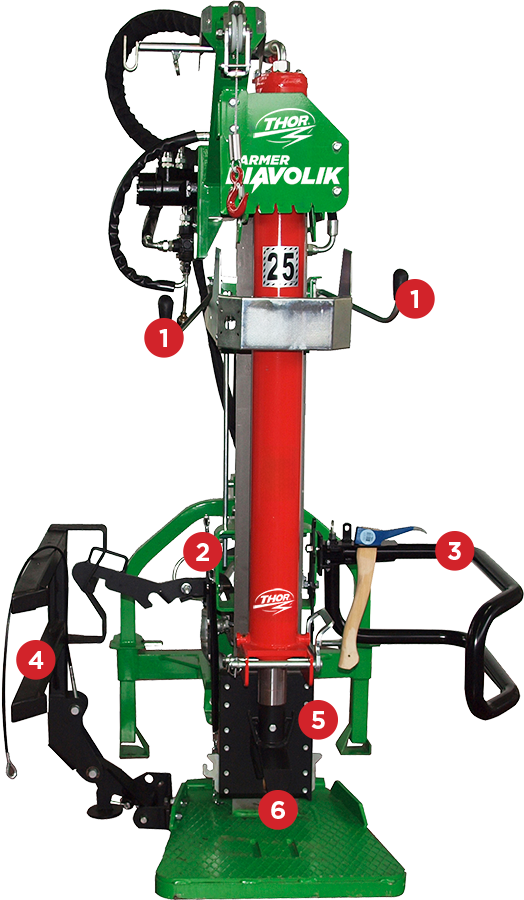

1

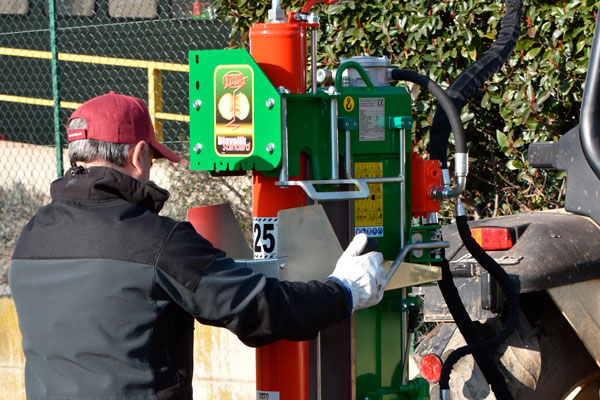

Ergonomic dual manual controls for the approach and splitting phase
2

Log fixing device - FIXING WOOD
3

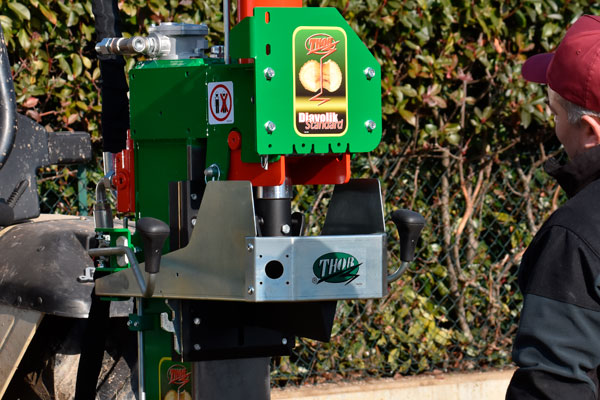

Double protection with integrated lifting hook support
4

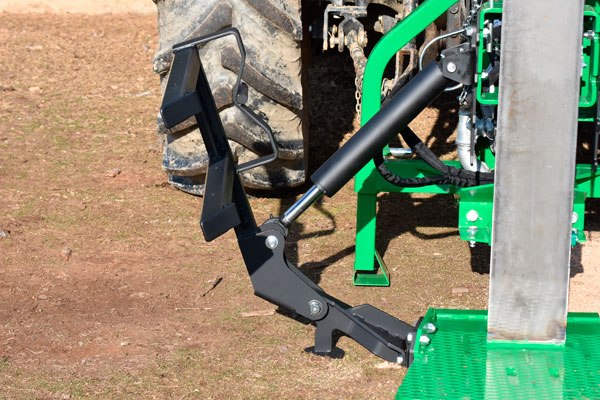

Side hoist foldable at the end of work
5

Cast iron guides
6

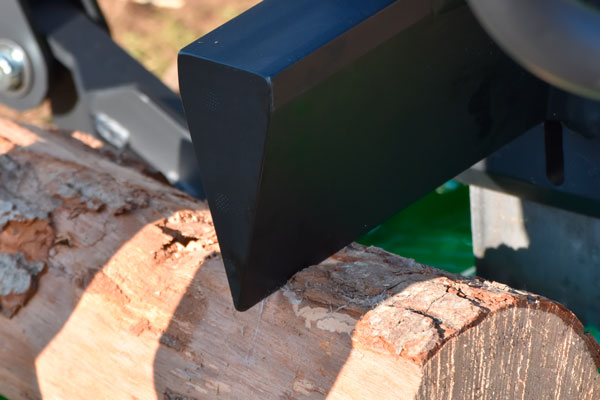

Cutter

Select the thumbnail to view the enlarged image a little further down

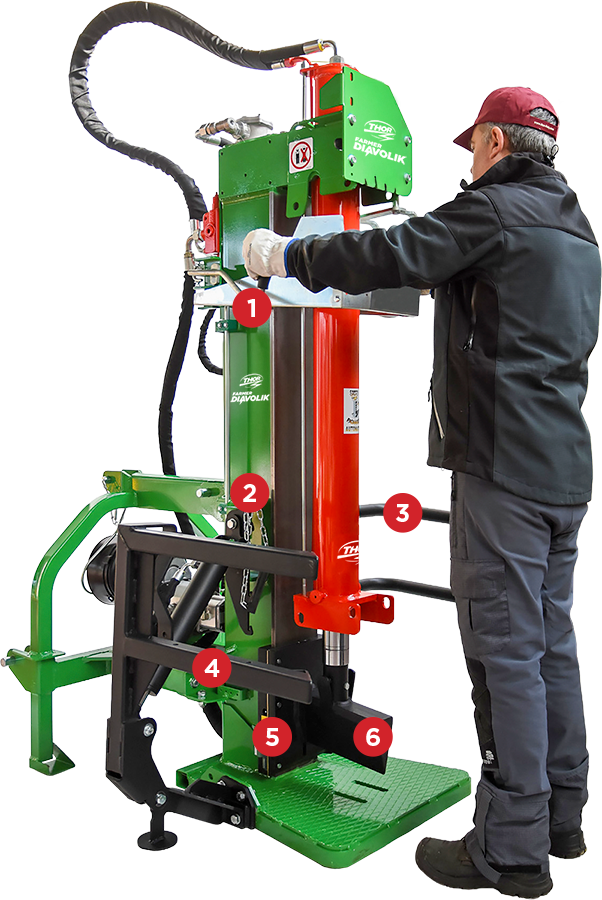

Farmer Diavolik - pompa PTO fissa + elettrico

VPF - KOMBI

Max

124cm

Max

100cm

View the technical data sheet

ITEM No.	47.100	45.100	45.101	45.102	45.103
Model	Farmer Diavolik
Splitting height / Cutter stroke	124 cm / 114 cm
Hydraulic oil tank	38 lt (internal tank)		85 lt (external tank)
Splitting force	22 ton	25 ton	30 ton
Power supply EL = electric, V.PF = tractor KOMBI = EL + V.PF	V.PF 540 rpm max.	V.PF 540 rpm max.	V.PF 540 rpm max.	EL 400 Volt	KOMBI EL 400V + V.PF
Power required (HP/kW)	30 / 22	46 / 34	50 / 37	7,5 / 5,5	7,5 / 5,5 - 50 / 37
Working pressure (bar) PD = Double pump	350	265	315	315 / PD	315 (PD x EL)
1ª cutting speed (cm/sec)	7	8	8	8	8 - 8
2ª cutting speed (cm/sec)	16	16,8	16,8	17,4	17,4 - 16,8
Return speed (cm/sec)	12,7	14,6	14,6	15,1	15,1 - 14,6
Rotation speed in rpm	450	450	450	1400	1400 / 450
3-point connector 1^st - 2^nd cat.	■	■	■	■	■
Wheels (ø mm)	▫	▫	▫	▫	▫
Working dimensions (A x B / H = 316 cm)	110 x 140	110 x 140	110 x 140	110 x 140	110 x 140
Weight (kg)	595	578	675	680	705
