Magik Multiuse

Vertical hydraulic log splitter with horizontal transport

For agricultural and forestry use

The Magik Multiuse is a compact and easy-to-handle log splitter, designed to offer maximum practicality, even during transport. Available in the 16 ton version, it combines power and ease of use in a single machine. Its tiltingstructure, equipped with wheels and a towing hook, allows for easy transport in the horizontal position, making it ideal for users who need to work in multiple locations or cutting areas.

The advantages that make the difference:

System-LEADER control system for precise log centering and safe splitting, with dual operating levers.
Integrated side hoist to facilitate log positioning.
Compact and robust structure, ideal for agricultural and forestry use.

The Magik Multiuse is the ideal solution for those seeking a powerful, practical, and easy-to-transport, log splitter, perfectly suited for dynamic and versatile agricultural use.

Download the technical data sheet

Technical features

Self-lubricating, interchangeable Teflon sliding guides.
Equipped with a a side hoist to reduce manual effort.
Steel cutter with an inclined cutting edge for greater penetration and reduced effort.
Wide, ergonomic base for ergonomic support of the log to be split.

Sensor for blocking the hydraulic flow.
Aluminium cutter stroke adjustment, easily adjustable to the desired height.

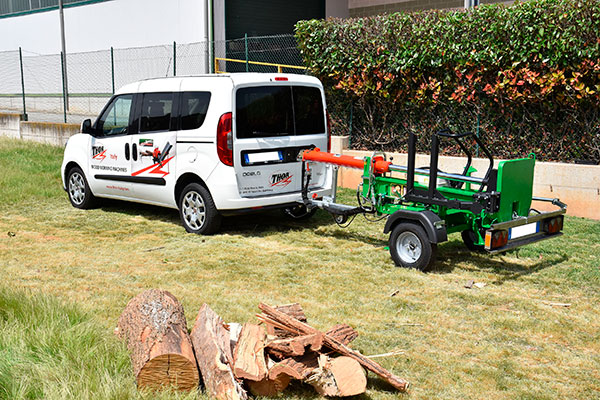

Magik Multiuse, Thor Italy - trasporto orizzontale a traino

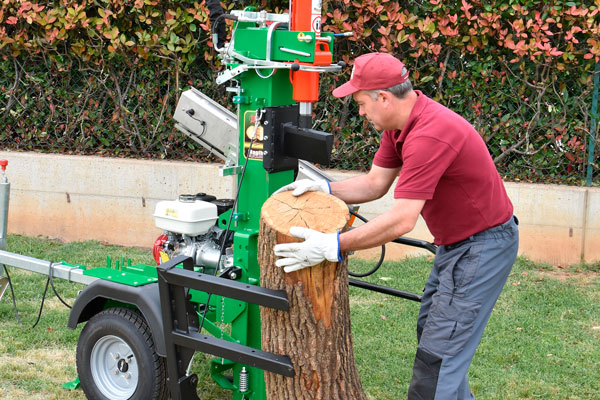

Magik Multiuse, Thor Italy - durante la fase di taglio

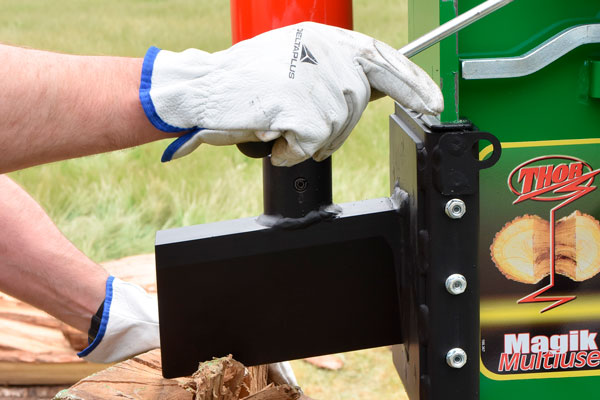

Magik Multiuse, Thor Italy - zoom sulla spaccatura semplice e veloce

Exclusive system:

Discover more

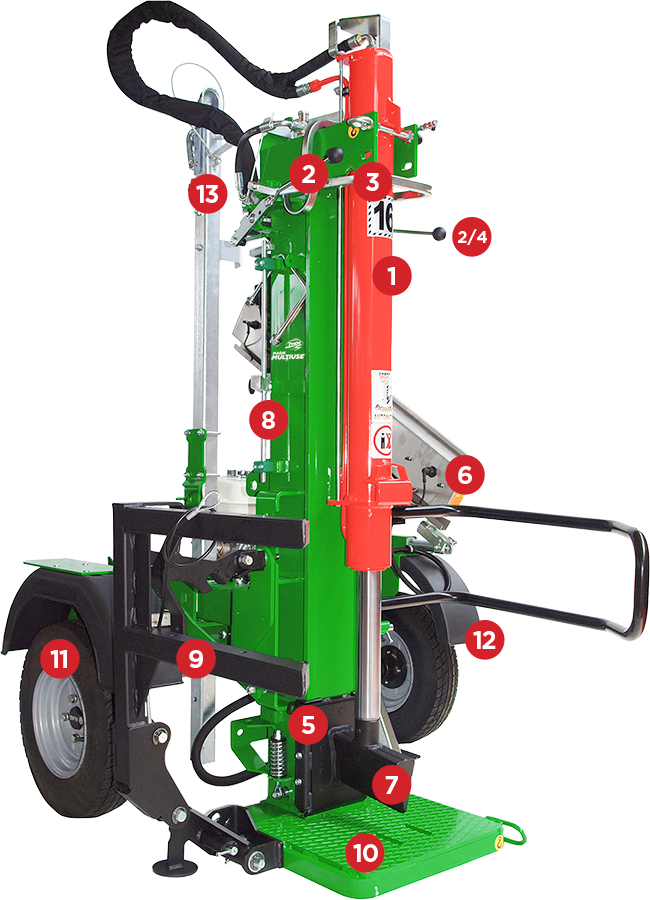

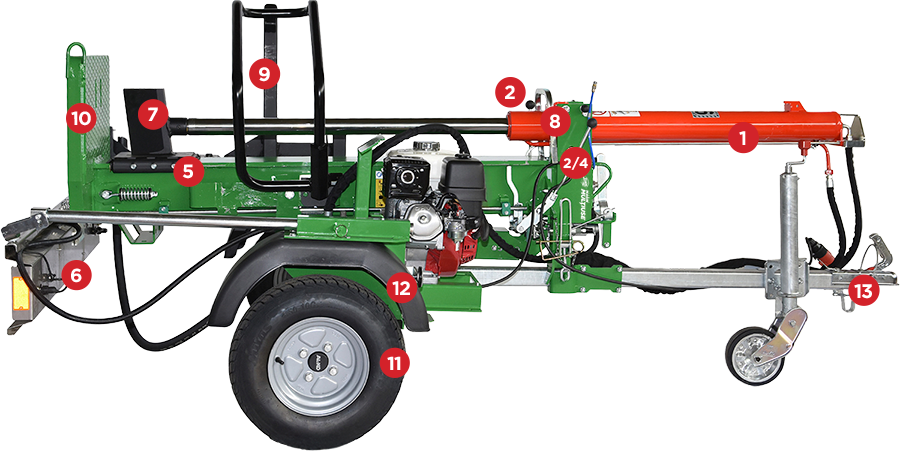

1

Hydraulic cylinder with a single position for both transport and operation
2

Dual ergonomic controls
3

Sensor
4

Single control for the centering phase (exclusive THOR system)
5

Guides
6

Rear lights bar for road traffic in rest position
7

Cutter
8

Cutter stroke adjustment
9

Side hoist, foldable at the end of work
10

Wide, ergonomic base
11

Pneumatic wheels
12

Plastic mudguards
13

Towing hook approved for ø 50 mm ball. Stabilizer wheel

Select the thumbnail to view the enlarged image a little further down

VS - EL

Max

115cm

Min - Max

5 cm - 90 cm

View the technical data sheet

ITEM No.	36.M.120	36.M.121
MODEL	Magik Multiuse
Splitting height / Cutter stroke	115 cm / 105 cm (adjustable)
Controls
Splitting force	16 ton
Power supply: VS = gasoline, EL = electric	VS 3200 rpm	EL 400 Volt
Power required (HP/kW)	9 / 6,7	5,5 / 4
Working pressure (bar) PD = double pump	250/PD	250
Hydraulic oil tank	23 lt	23 lt
1ª cutting speed (cm/sec)	6	4,5
2ª cutting speed (cm/sec)	14	10,5
Return speed (cm/sec)	11	8,5
Rotation speed in rpm	3200	1400
Side hoist	■	■
Rear lights bar	■	■
Mud guards	■	■
Towing hook	■	■
Public road homologation	*	*
Working dimensions (L x W x H) cm	290 x 122 x 268
Weight (kg)	558	558
