Diavolik

Vertical hydraulic log splitter

For industrial and professional agricultural and forestry use

The Diavolik is designed for intensive, professional use. Available in 25 ton and 30 tonversions, it delivers outstanding performance even when handling the largest logs, standing out for its advanced technological solutions.

The advantages that make the difference:

Exclusive Stop & GO system, allowing precise and safe control of both the log approach and the splitting operation.
Electric control for the return of the cutting blade
Hydraulic cylinder with retraction at the end of the operation
Robust and well-balanced structure, designed to handle continuous workloads and large-size logs
Compatible with professional optional accessories to increase productivity and operating comfort.

The Diavolik represents the highest expression of power and innovation within the range, ideal for users seeking a reliable, precise, and technologically advanced log splitter.

Download the technical data sheet

Technical features

Bolted GS400 cast-iron sliding guides, easily interchangeable.
Equipped with a side hoist to reduce manual effort.
3-point connector, Category 1–2
Tempered steel splitting blade with a 6° angled cutting edge for a greater penetration and less effort.
Electric control for the return stroke of the cutter

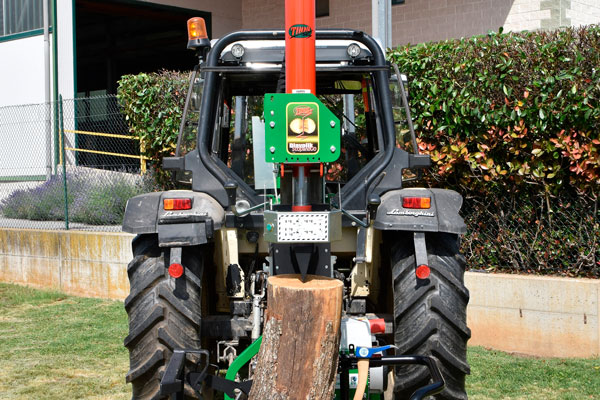

Diavolik Stop and Go, Thor Italy - posizione di trasporto

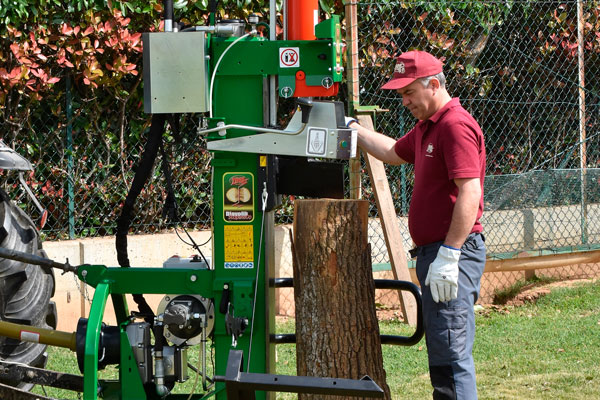

Diavolik Stop and Go, Thor Italy - fase di spacco

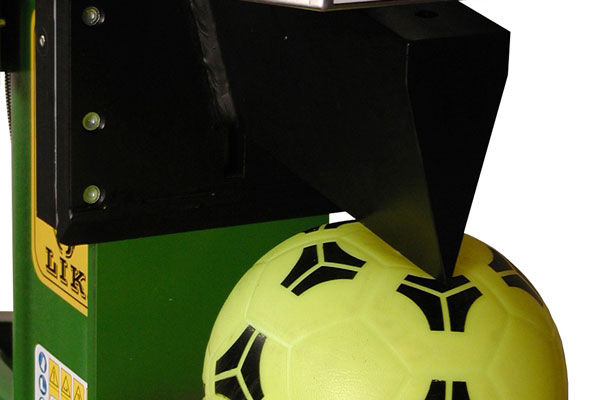

Diavolik Stop and Go, Thor Italy - particolare sistema

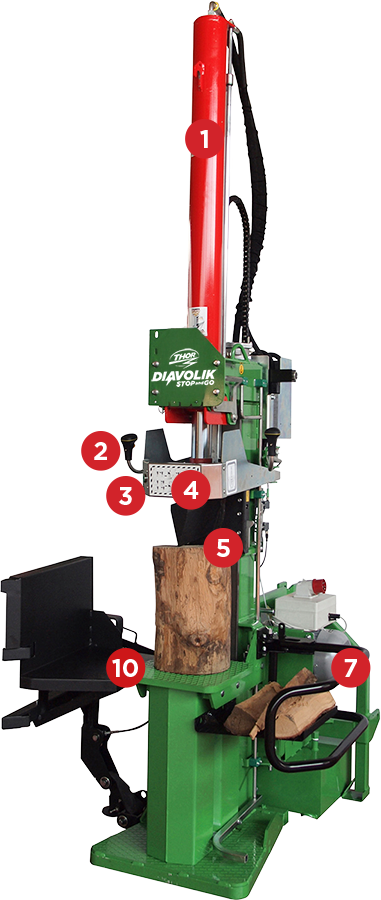

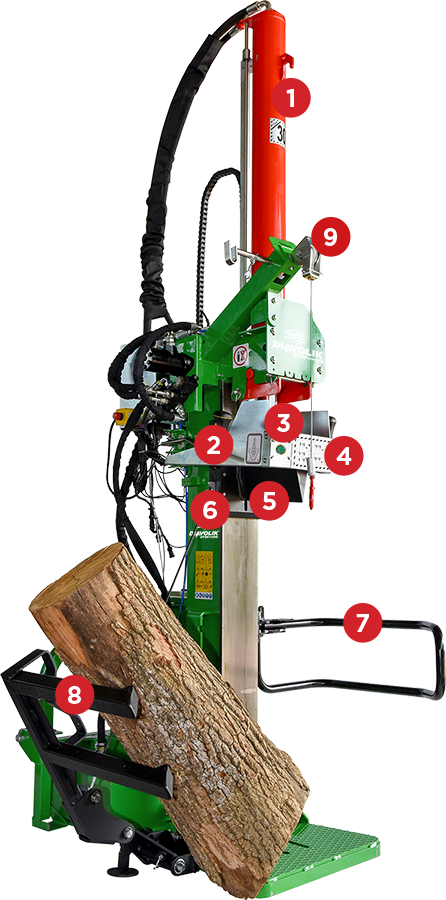

1

Hydraulic cylinder retractable for storage. H = 215 cm
2

12 Volt electric controls unique and with Stop and GO system
3

Electric control for the return stroke of the cutter
4

Safety sensor and lever protector and hydraulic flow lock
5

Cutter
6

Cast-Iron guides
7

Double side protection
8

Side hoist included, foldable at the end of work
9

Manual winch or with remote control (optional accessory)
10

50 cm board with pedal (optional accessory)

Select the thumbnail to view the enlarged image a little further down

KOMBI - VPF

Max

123cm

Max

100cm

View the technical data sheet

ITEM No.	46.100	46.101	46.102	46.103
MODEL	Diavolik
Splitting height / Cutter stroke	123 cm / 113 cm
Hydraulic oil tank	38 lt (internal tank)	85 lt (external tank)
Splitting force	25 ton	30 ton
Controls as standard
Power supply EL = electric, V.PF = tractor KOMBI = EL + V.PF	V.PF 540 rpm max.	V.PF 540 rpm max.	EL 400 Volt	KOMBI EL 400V + V.PF
Power required (HP/kW)	46 / 34	50 / 37	7,5 / 5,5	7,5 / 5,5 - 50 / 37
Working pressure (bar) PD = double pump	260	315	315 / PD	315 (PD x EL)
1ª cutting speed (cm/sec)	8	8	8	8 - 8
2ª cutting speed (cm/sec)	16,8	16,8	17,4	17,4 - 16,8
Return speed (cm/sec)	14,6	14,6	15,1	15,1 - 14,6
Rotation speed in rpm	450	450	1400	1400 / 450
3-point connector 1^st - 2^nd cat.	■	■	■	■
Wheels(ø mm)	▫	▫	▫	▫
Working dimensions (W x L / H = 316 cm)	110 x 140	110 x 140	110 x 140	110 x 140
Weight (kg)	630	678	688	715
