Farmer

Vertical hydraulic log splitter

A convenient and reliable choice

The Farmer is a versatile and powerful log splitter, ideal for those who need to process large logs in a practical and safe way. Available in three power versions - 13 tons, 15 tons and 18 tons – it combines strength, reliability, and user comfort.

The advantages that make the difference:
  • Side hoist that facilitates log positioning.
  • High splitting force for fast and precise work.
  • Robust structure designed to last over time.
  • Available with professional optional accessories to increase productivity.

Among the available accessories are a manual or a remote-controlled winch with a pulling force of 250 kg and a pulley to pull from the bottom, both ideal for facilitating the handling of heavier logs in complete safety.

Download the technical data sheet

Technical features

  • Interchangeable self-lubricating Teflon sliding guides.
  • Equipped with side hoist to reduce manual effort.
  • 3-point connector, Category 1-2 for tractor models.
  • Special steel cutter.
Farmer, Thor Italy - durante fase di taglio

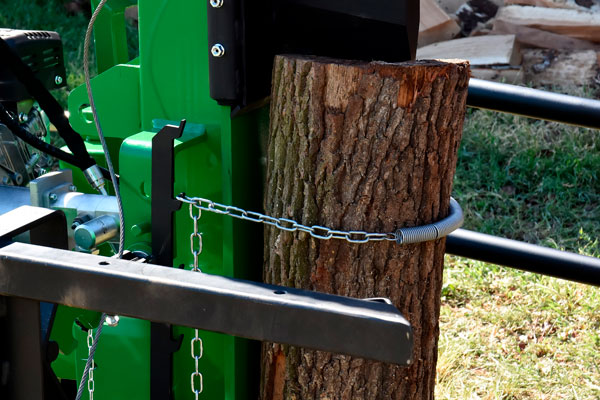

Farmer, Thor Italy - sistema fixing wood

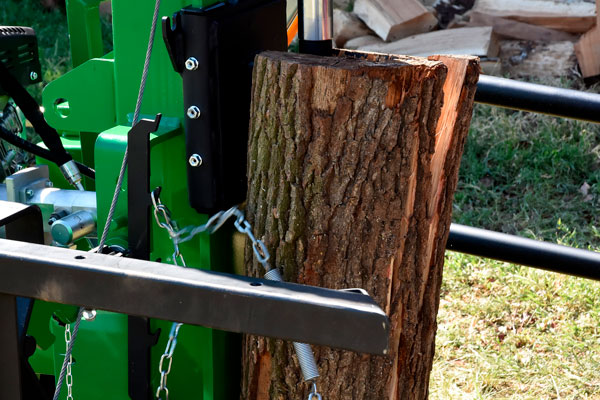

Farmer, Thor Italy - sistema fixing wood si sgancia in automatico

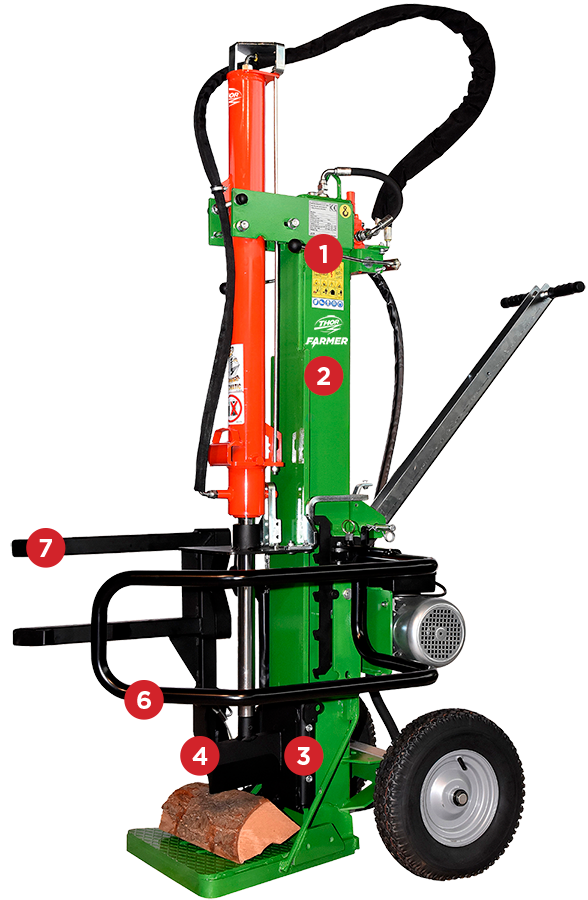

Farmer - motore elettrico
  • 1
    Two ergonomically positioned levers for the approach and splitting phases
  • 2
    Hydraulic oil tank
  • 3
    Sliding guides
  • 4
    Cutter
  • 5
    Log-fixing device - FIXING WOOD
  • 6
    Double side protection with integrated lifting hook support
  • 7
    Side hoist

Select the thumbnail to view the enlarged image a little further down

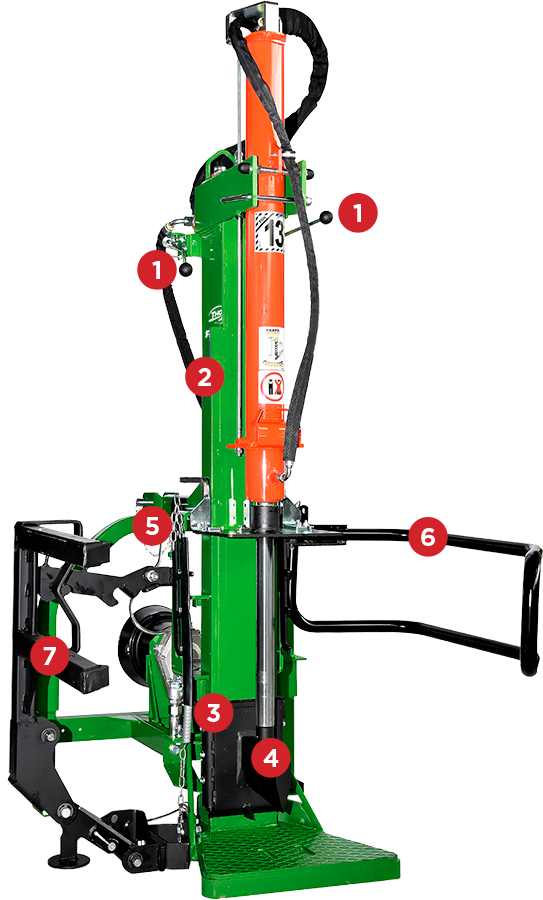

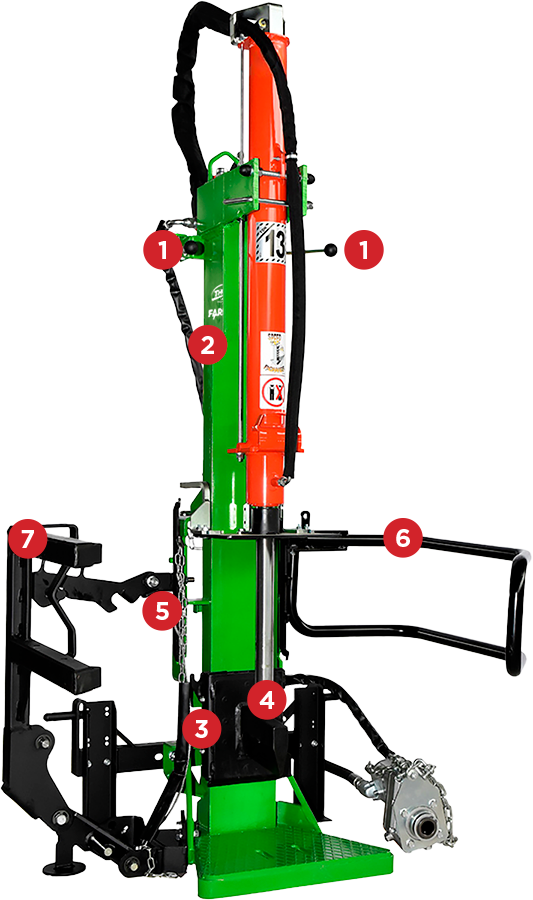

Farmer - motore elettrico Farmer - pompa staccata Farmer - pompa PTO fissa

EL - HVP - VPF

Max

Max

104cm
Max

Max

90cm

View the technical data sheet

Model Farmer
Splitting height / Cutter stroke 104 cm / 94 cm 104 cm / 94 cm
ø Max. splitting diameter 70 cm 90 cm
Hydraulic oil tank 22 lt 22 lt 37 lt
Splitting force 13 ton 15 ton 18 ton
ITEM No. 37.103 37.104 37.101 37.102 39.102 39.110
Power supply
EL = electric, HVP/V.PF = tractor
EL
230 Volt
EL
400 Volt
HVP
540 rpm max.
V.PF
540 rpm max.
V.PF
540 rpm max.
V.PF
540 rpm max.
Power required (HP/kW) 3 / 2,2 5,5 / 4 23 / 17 23 / 17 23 / 17 25 / 18
Working pressure (bar)
PD = double pump
260/PD 260 260 260 250 280
1ª cutting speed (cm/sec) 6,7 6 9 9 7 7
2ª cutting speed (cm/sec) 21,4 19 28 28 16 16
Return speed (cm/sec) 10 9 13,1 13,1 12,7 12,7
Rotation speed in rpm 2800 1400 450 450 450 450
Pneumatic wheels (ø mm) 400 ■ 400 ■
3-point connectors 1st - 2nd cat.
Working dimensions
(A x B / H = 263 cm)
113 x 100 113 x 100 113 x 90 113 x 125 113 x 125 113 x 125
Weight (kg) 316 316 300 315 333 380
OPTIONAL ACCESSORIES

They are available exclusively with tractor power supply, unless otherwise specified.

Lifting hook

Lifting hook

Available for all power supply types.

60° cutter - 13 ton

60° cutter - 13 ton

Available for all power supply types.

Cardan shaft

Cardan shaft

Manual winch, pulling force 250kg

Manual winch
Pulling force: 250kg

Pulley to pull from the bottom

Pulley to pull from the bottom

Chainsaw holder

Chainsaw holder

Transport trolley full wheels 250 - 13 / 15 ton

Transport trolley full wheels 250 - 13 / 15 ton

Timber tong

Timber tong

Not available
Included as standard
*
Optional
