Marty Slim

Horizontal hydraulic log splitter

For private use

Marty Slim is a compact and practical horizontal log splitter, ideal for domestic and hobby use. Powered by an electric connection, it ensures constant and reliable performance with no need for recharging. Available in the 6 tonversion, it combines efficiency, simplicity, and safety in a handy and easy-to-manage design.

Advantages that make the difference:
  • Easy to use: the splitting cycle starts automatically when the cover is closed.
  • Convenient adjustment of the splitting length via an external knob.
  • Electric power supply pfor continuous, uninterrupted operation.
  • Foldable, space-saving for easy storage after use.

Marty Slim is the perfect solution for those looking for a practical, reliable, and quiet log splitterdesigned for private use and for anyone who values comfort and simplicity in everyday work.

Download the technical data sheet

Technical features

  • Adjustment knob for setting the length from 15 to 50 cm
  • Simple and safe: the splitting cycle starts only once the cover is closed.
  • Electric motor with power cable: single-phase or three-phase depending on the model.

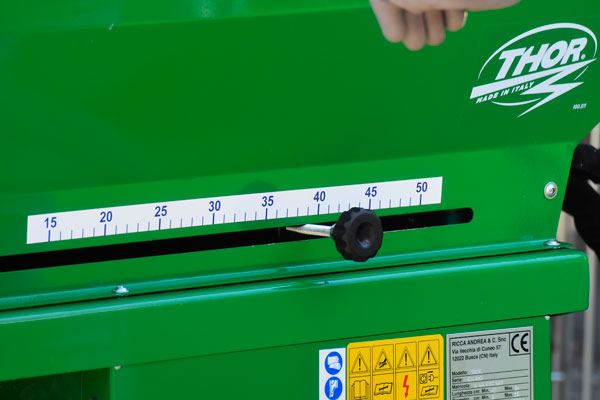

Marty Slim, Thor Italy - leva di regolazione

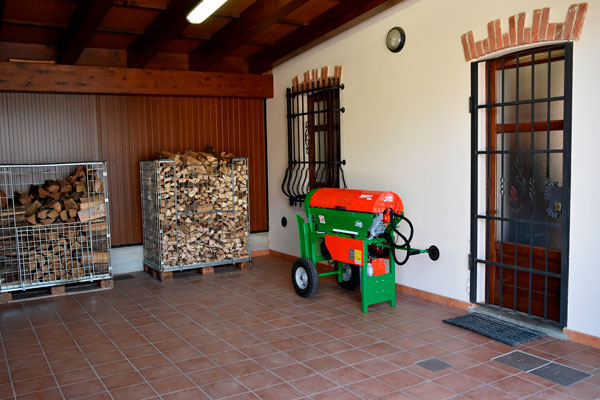

Marty Slim, Thor Italy - posizione a lavoro concluso

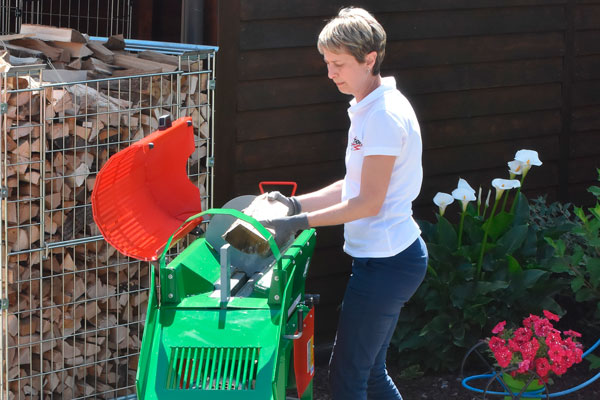

Marty Slim, Thor Italy - durante fase di taglio

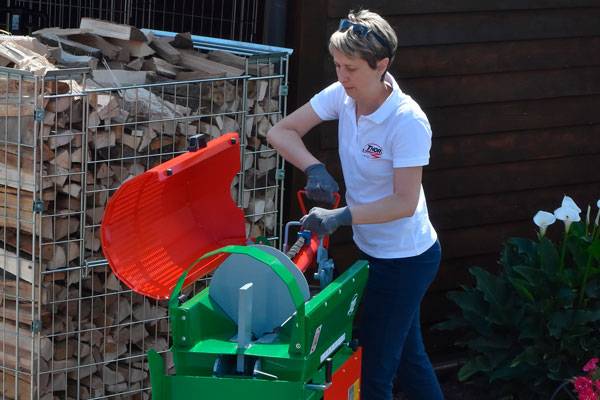

Marty Slim, Thor Italy - durante fase di taglio
Marty Slim, Thor Italy - trasporto semplice

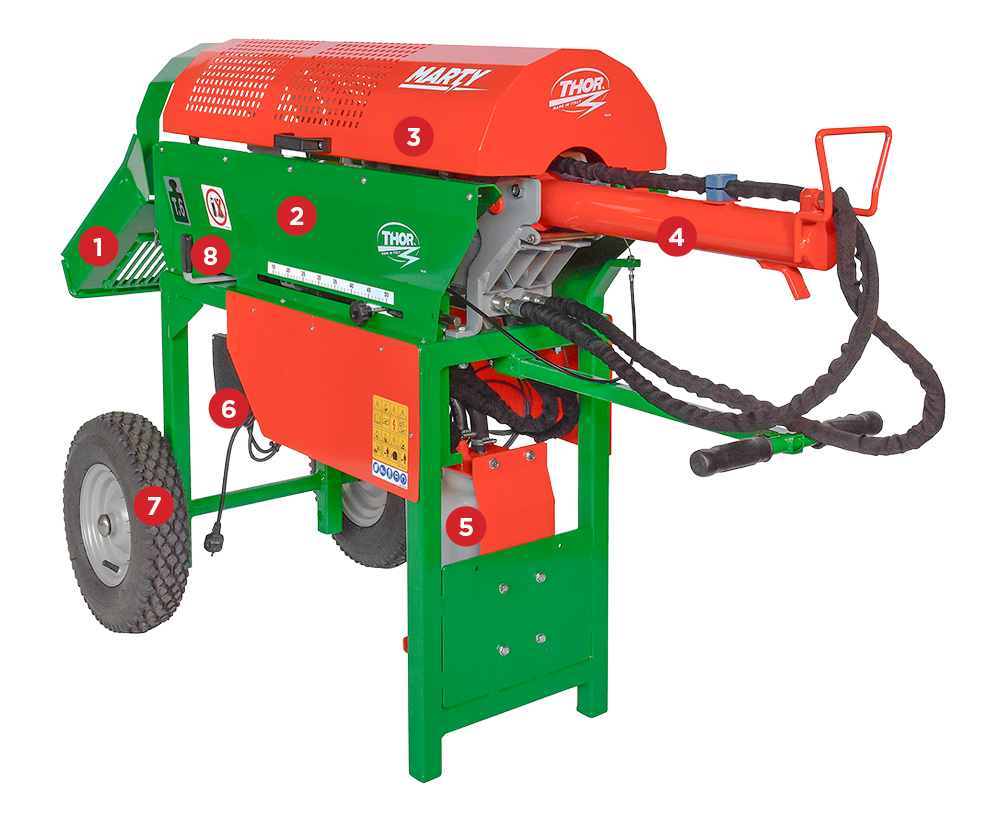

Marty Slim - Motore elettrico
  • 1
    Adjustable support table for the discharge of split logs. Foldable at the end of work.
  • 2
    Splitting channel for positioning the log to be split
  • 3
    Safety cover: the splitting operation starts automatically as soon as it is closed.
  • 4
    Hydraulic cylinder, retractable after use
  • 5
    External hydraulic oil tank
  • 6
    Electric motor with power cable
  • 7
    Rear pneumatic wheels ø 400 mm
  • 8
    Safety lever for retracting the pushing plate

Select the thumbnail to view the enlarged image a little further down

Marty Slim - Motore elettrico

EL

Adjustable

Adjustable

from 15 to 50 cm
Min - Max

Min - Max

5 cm - 25 cm

View the technical data sheet

MODEL Marty Slim
Adjustable cutting length from 15 to 50 cm
Hydraulic oil tank 8 lt (external tank)
Splitting force 6 ton
ITEM No. 60.103 60.105
Power supply
EL = electric
EL
230 Volt
EL
400 Volt
Power required (HP/kW) 2,5 / 1,85 4 / 3
Working pressure (bar)
PD = double pump
230/PD 235
1ª cutting speed (cm/sec) 10 3,2
2ª cutting speed (cm/sec) 1,8 -
Return speed (cm/sec) 12,3 15,2
Wheels (ø mm)
PN = pneumatic
■ 400 PN ■ 400 PN
Working dimensions
(W x L / H = 110 cm)
60 x 165 60 x 165
Weight (kg) 158 158
OPTIONAL ACCESSORIES Cross cutter
Description Cross cutter
Item No. 835.027.K
Not available
Included as standard
*
Optional
