Katana 750

Saw Bench

For industrial and agricultural use

Katana 750 is a professional saw bench designed for agricultural and industrial use. It delivers power, precision, and reliability even during the most demanding operations, while maintaining a compact and easy-to-handle design. With a maximum cutting depth of 30 cm, it offers high performance for users who require efficient and consistent cutting over time.

Advantages that make the difference:
  • Reinforced structure designed to withstand intensive and prolonged working cycles.
  • Powerful and precise cutting, even on large-diameter logs.
  • Ergonomic design that facilitates operation and reduces operator fatigue.

The Katana 750 is the ideal choice for those seeking a robust, reliable, and high-performance saw bench, perfectly suited for agricultural and industrial environments.

Download the technical data sheet

Technical features

  • Three exclusive THOR systems: safety cover, release lever, emergency braking device
  • 3-point connector, Category 1–2 (for tractor model)
  • The side conveyor facilitates unloading and is already designed for connection to a conveyor belt.
  • Transmission with low friction 3 XPA belts

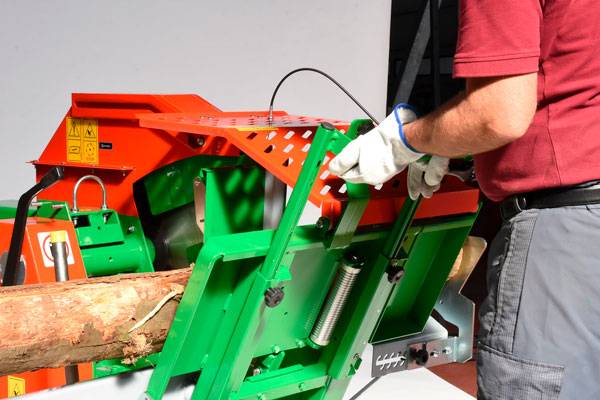

Katana 750 Thor Italy - macchina pronta all'uso

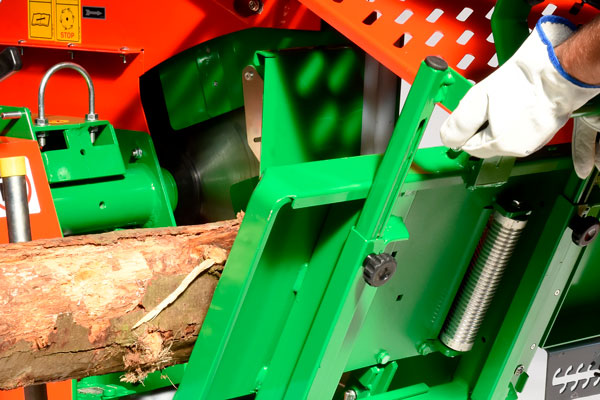

Katana 750 Thor Italy - macchina pronta all'uso

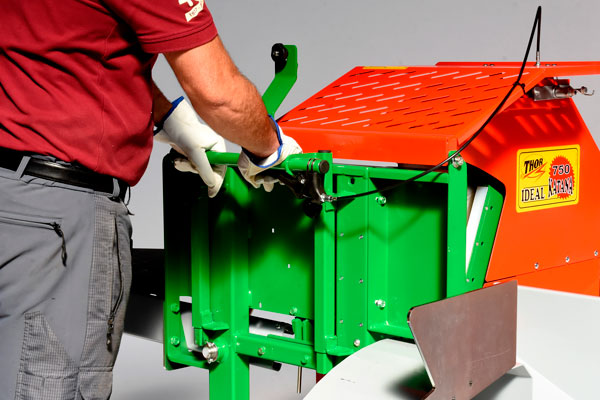

Katana 750 Thor Italy - macchina pronta all'uso
Katana 750 Thor Italy - macchina pronta all'uso

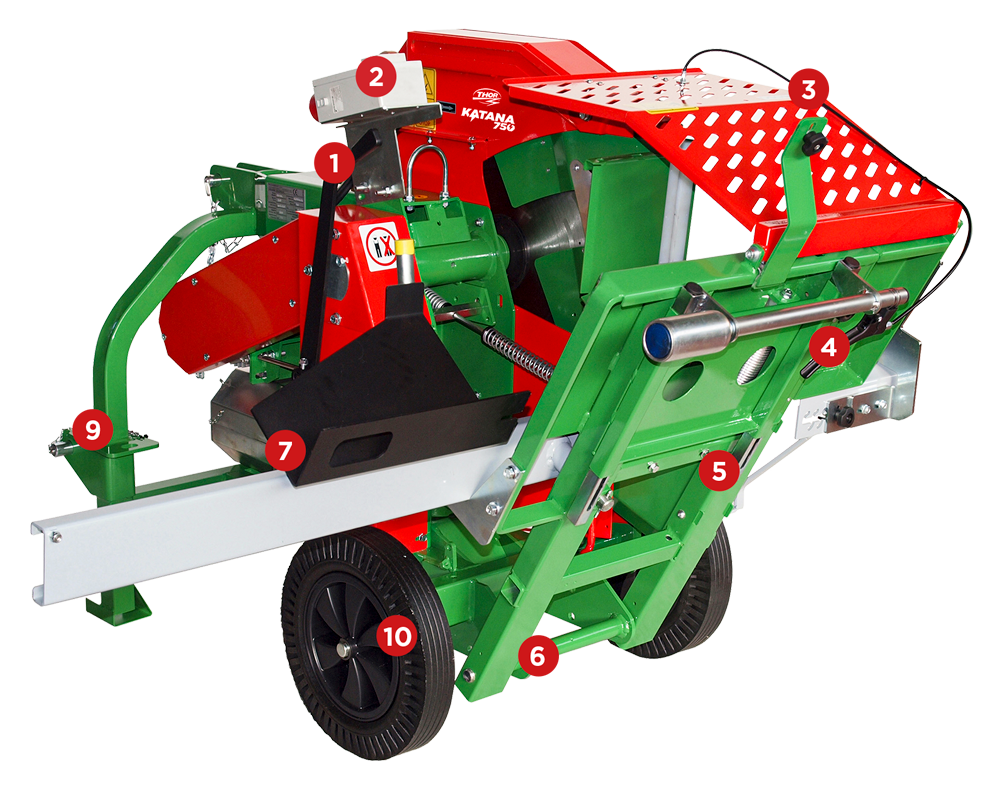

Katana 750 - pompa PTO fissa + motore elettrico

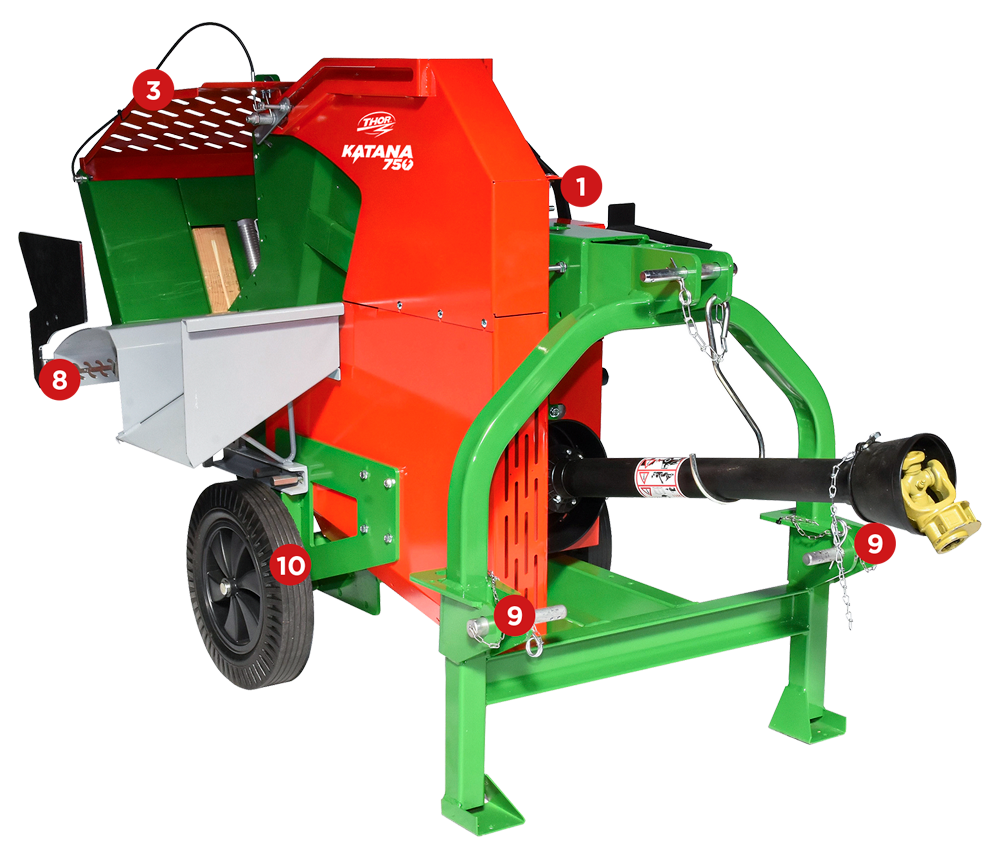

  • 1
    Emergency braking device for models with PTO (exclusive THOR system)
  • 2
    Switch with release coil, brake and thermal protection
  • 3
    Safety cover of the cutting area (THOR exclusive system)
  • 4
    Lever for unlocking the bench movement (THOR exclusive system)
  • 5
    Handle height adjustment for the action of the bench
  • 6
    Self-lubricating bushings mounted on the fulcrum of the swing tank
  • 7
    Side feed mounted on bearings, with vertical stop position for transport
  • 8
    Cut adjuster and discharge conveyor as standard
  • 9
    3-point connector, Category 1–2 (for tractor model)
  • 10
    Full transport wheels ø 400 mm as standard

Select the thumbnail to view the enlarged image a little further down

Katana 750 - pompa PTO fissa + motore elettrico Katana 750 - motore elettrico Katana 750 - pompa PTO fissa Katana 750 - Benzina

KOMBI - EL - VPF - VS

Max

Max

ø 30 cm

ø 750 mm

View the technical data sheet

MODEL Katana 750
Max. cutting diameter ø 30 cm
Widia blade 30 mm dia. hole included ø 750 mm
Blade revs (rpm) 1400
ITEM No. K75.101 K75.103 K75.104 K75.105
Power supply
EL = electric (S6), V.PF = tractor,
Kombi,VS = gasoline
V.PF
540 rpm
EL
400 Volt
Kombi
(EL 400 V + V.PF)
VS
3200 rpm
Power required (HP/kW) 25 / 18 12 / 9 7,5 / 5,5 - 25 / 18 13 / 9,55
Blade stop brake
3-point connector 1st - 2nd cat. -
Cut adjuster and discharge conveyor for conveyor belt
Side foldable logs feed
Full wheels (ø mm) 400 400 400 400
Working dimensions
(W x L x H cm)
170 x 170 x 120 170 x 215 x 120
Weight (kg) 257 325 300 350
OPTIONAL ACCESSORIES Steel blade Thrust roller Pneumatic
wheels ø 400 Cardan shaft
with safety bolt
Description Steel blade Thrust roller Pneumatic wheels ø 400 Cardan shaft with safety bolt
Item No. DA.750.30 D.60.120 200.193.K 600.125
Electric * * *
Tractor * * * *
Kombi * * * * (V.PF)
Petrol * * *
Not available
Included as standard
*
Optional
