Alpino

Vertical hydraulic log splitter

A targeted choice for every family

The Alpino is a robust and reliable vertical hydraulic log splitter , entirely manufactured in Italy. Available in three splitting-force versions (6.5 ton – 7.5 ton – 8.5 ton), it combines power and ease of usein a compact design that takes up very little space. The System-LEADER foot control ensures precise and comfortable centering, making the work fast and safe.

The benefits are immediate and concrete:

Solid structure and reinforced frame for maximum stability.
Compact design, easy to handle
Available with different engine options to suit every need.

It can be complemented with optional accessories such as the 60° cutter, for easier log splitting.

Download the technical data sheet

Technical features

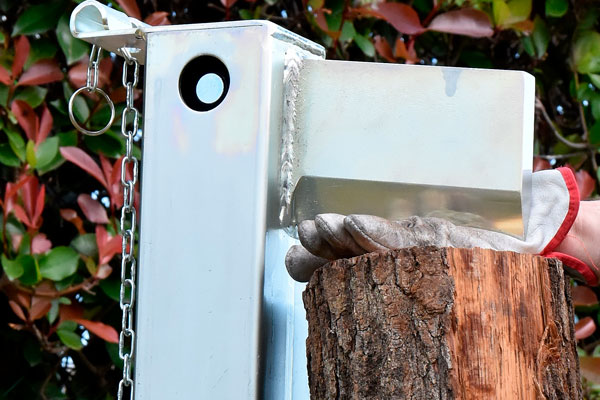

Cutter inclined at 6° for reducing split effort.
Ergonomically positioned and comfortable dual-control levers for the splitting phase.
Curved board for the logs for a greater splitting performance.
Very solid frame structure.

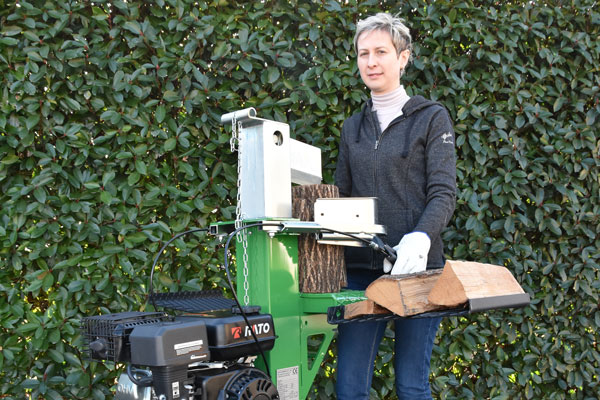

Alpino, Thor Italy - durante fase di taglio

Exclusive system:

Discover more

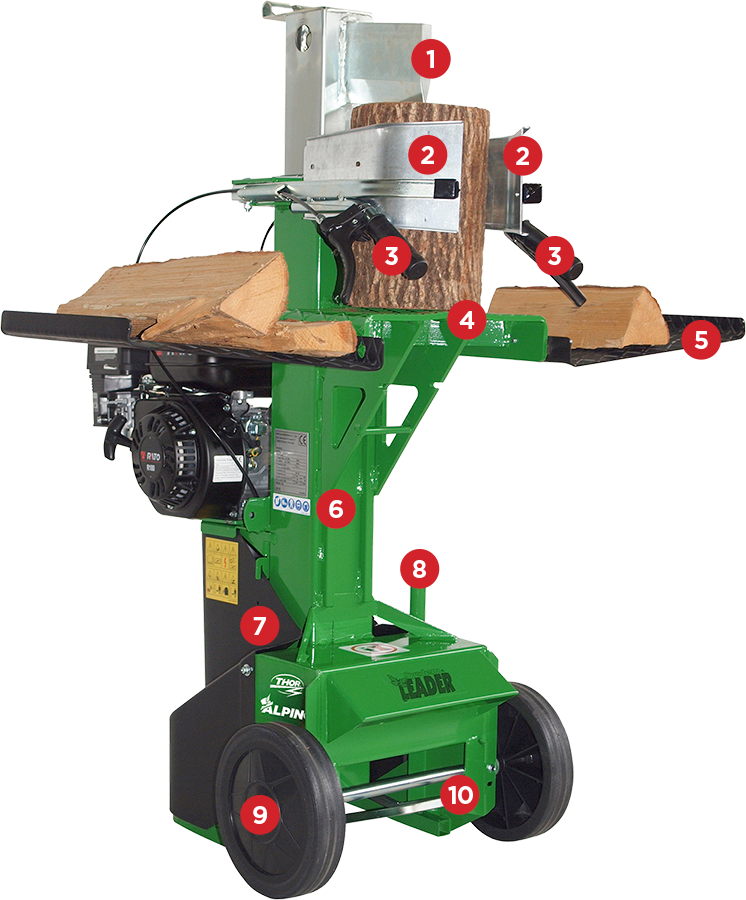

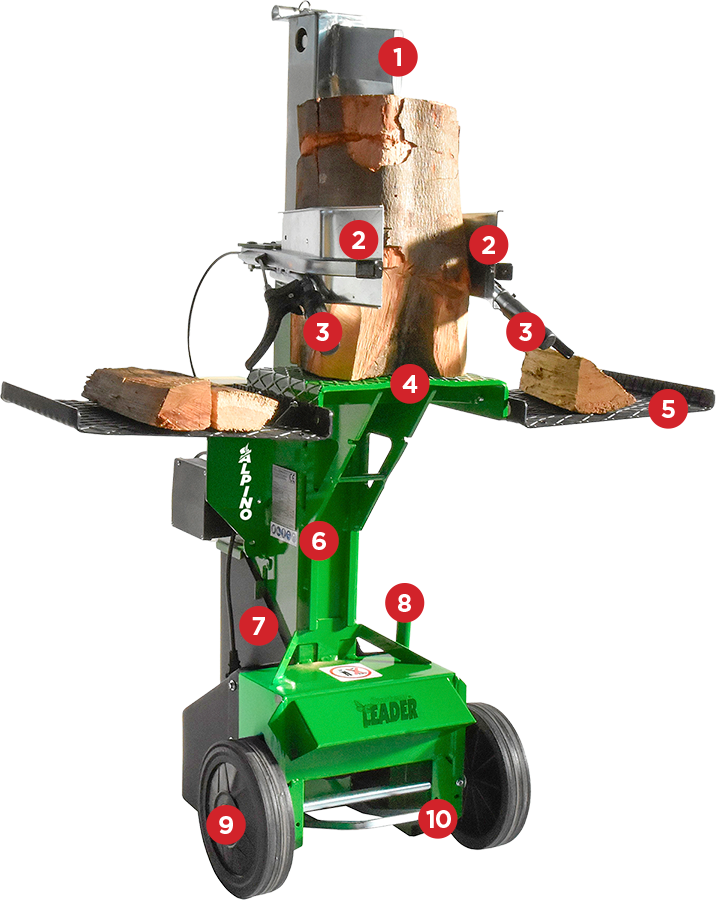

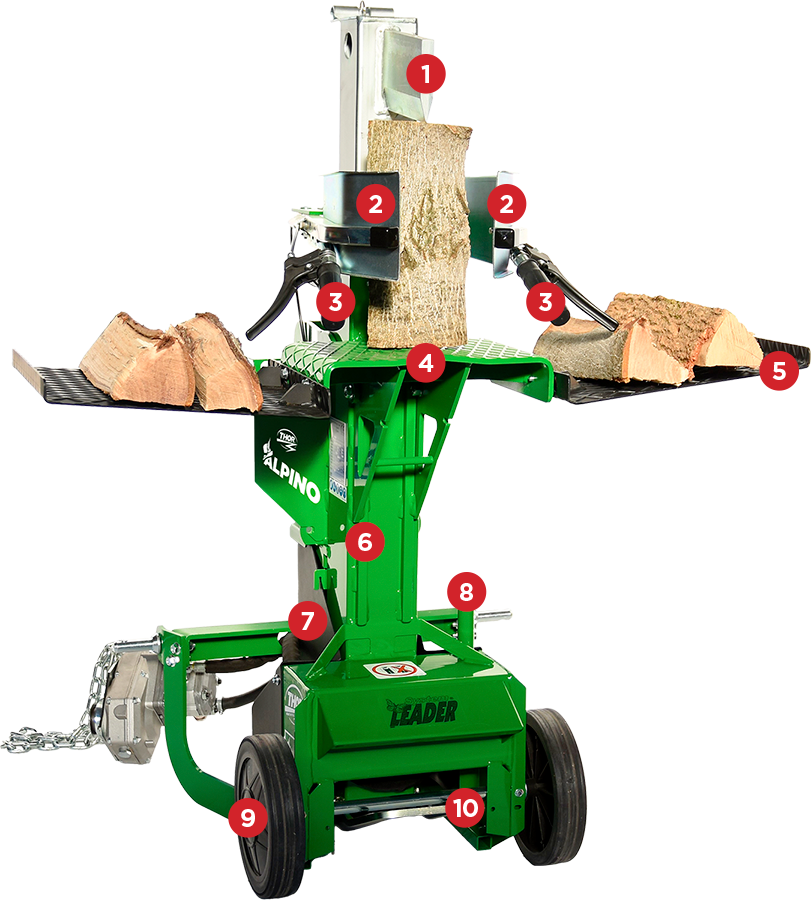

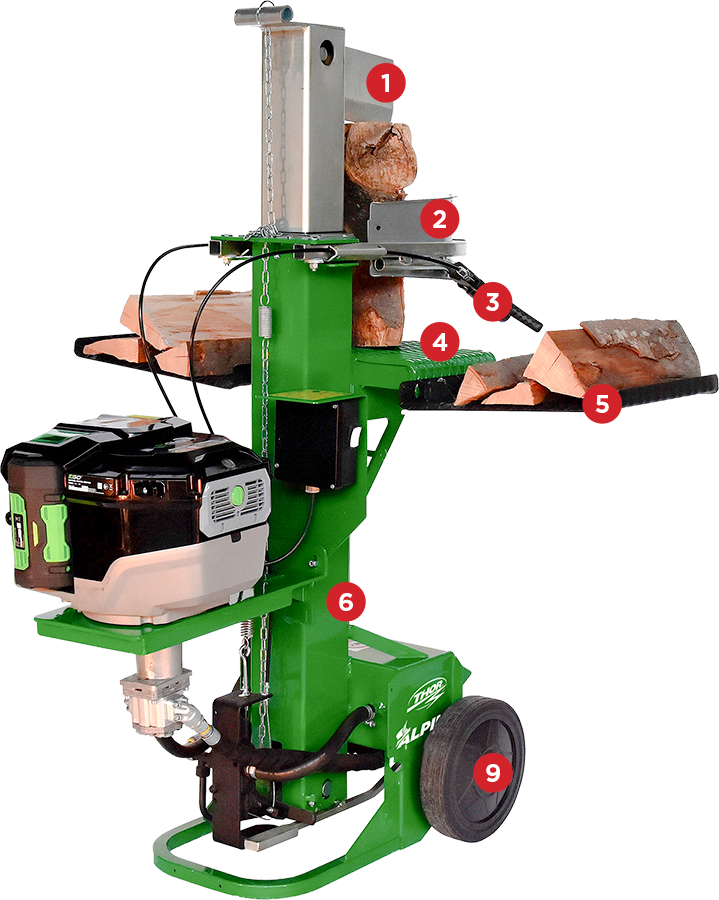

1

Cutter
2

Dual fall arrest guards INCLUDED
3

Ergonomic dual-control levers
4

Curved board for wood support
5

Double lateral extensions for log support INCLUDED
6

Frame
7

Carter for controls coverage (for 8.5 tons as standard)
8

Hydraulic oil tank incorporated into the frame
9

Full wheels as standard
10

Approved pedal (standard) for the approach stroke and log centering

Select the thumbnail to view the enlarged image a little further down

EL - VS - HVP - LITHIUM

Max

54cm

Max

50cm

View the technical data sheet

ITEM No.	65.100	65.102	85.104*	85.100	85.101	85.102	85.103
MODEL	Alpino
Splitting force	6,5 ton		7,5 ton	8,5 ton
Adjustable cutter stroke	50 cm		50 cm	50 cm
ø Adjustable cutter stroke	5 - 40 cm		5 - 50 cm	5 - 50 cm
Hydraulic oil tank	6 lt		6 lt	6 lt
Lateral log support extensions	■		■	■
Fall arrest guards	■		■	■
Controls as standard
Power supply EL = electric, HVP = tractor, VS = gasoline, LITHIUM = lithium-ion battery	EL 230 Volt	EL 400 Volt	LITHIUM 56 V 2800 rpm	EL 230 Volt	EL 400 Volt	VS 3200 rpm	HVP 540 rpm
Power required (HP/kW)	2,5 / 1,85	4 / 3	3,24 / 2,38	2,5 / 1,85	4 / 3	5 / 3,8	15 / 11
Working pressure (bar) PD = double pump	230	230	230	250/PD	250	250	250
1ª cutting speed (cm/sec)	3,2	3,2	5,3	10	5,3	4,5	7,5
2ª cutting speed (cm/sec)	—	—	—	1,8	—	—	—
Return speed (cm/sec)	15,2	15,2	36	12,3	36	30	36
Rear controls coverage	▫	▫	▫	■	■	■	■
Full wheels (ø mm)	200	200	250	250	250	250	250
Working dimensions (WxL / H=156 cm)	116x70 cm	116x70 cm	116x100 cm	116x70 cm	116x70 cm	116x100 cm	116x100 cm
Weight (kg)	106	106	120	112	115	118	122
