Magik Evolution

Vertical hydraulic log splitter

For agricultural and forestry use

The Magik Evolution is a robust log splitter, designed to deliver power, precision, and ease of use in any situation. Based on the Magik model, it stands out thanks to the new System-Leader EVOLUTION, , which replaces traditional control levers with ergonomic push buttons for smoother, more modern operation.

The advantages that make the difference:

System-Leader EVOLUTION with push-button control for a more comfortable and intuitive working experience.
AUTOMATIC hydraulic cylinder coupling and release system
Robust structure, ideal for frequent professional forestry and agricultural use.

The Magik Evolution is the perfect solution for those who want the performance and reliability of the Magik, combined with the convenience of a next-generation control system designed to make every splitting operation easier and more precise.

Download the technical data sheet

Technical features

Interchangeable self-lubricating Teflon sliding guides.
Equipped with a side hoist to reduce manual effort.
3-point connector, Category 1–2..
Special steel splitting knife with angled cutting edge for better penetration and reduced effort.
Wide and ergonomic base for stable support of the log to be split.

Sensor for blocking the hydraulic flow.
Aluminium cutter stroke adjustment, easily adjustable to the desired height.

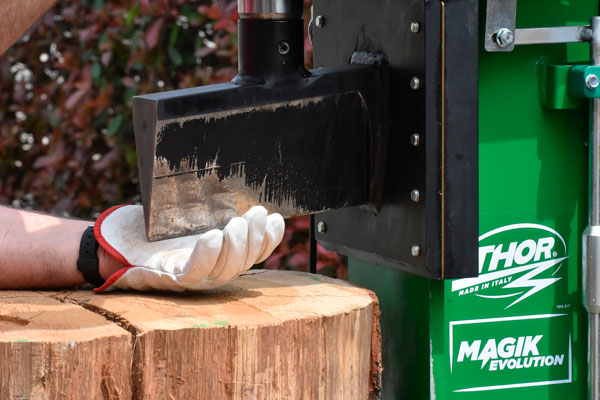

Magik Evolution, Thor Italy - particolare sistema

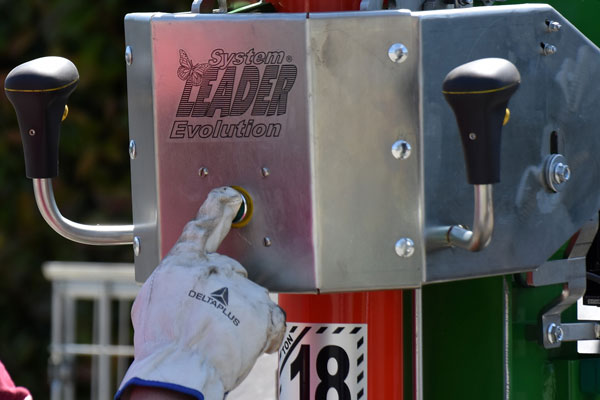

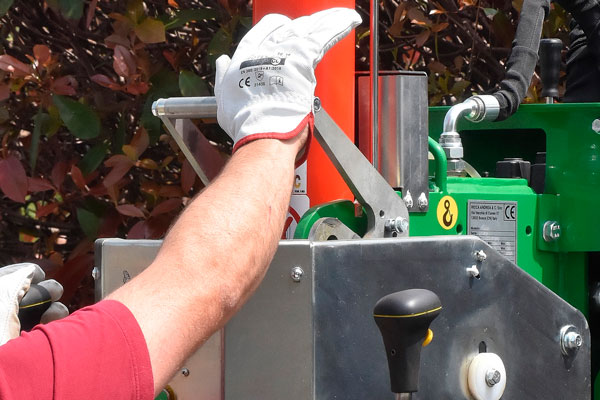

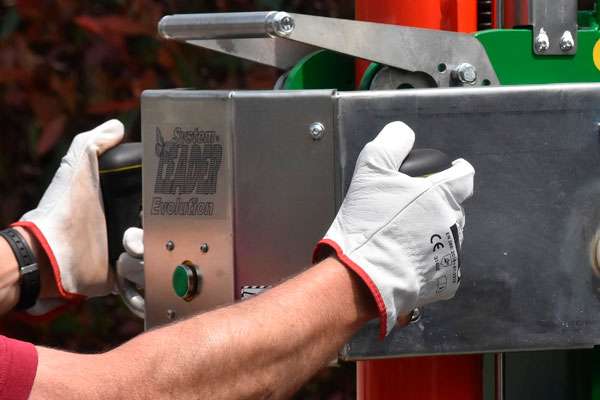

Magik Evolution, Thor Italy - particolare sistema System Leader Evolution

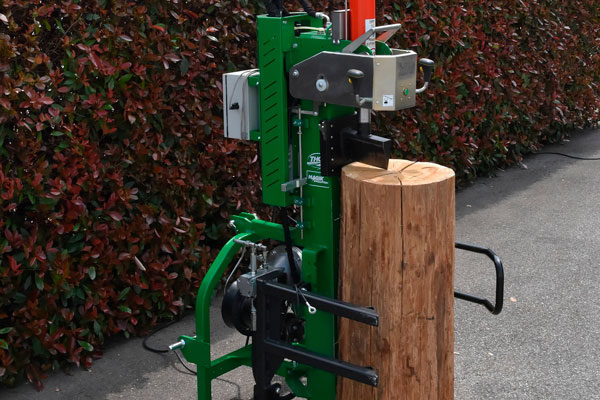

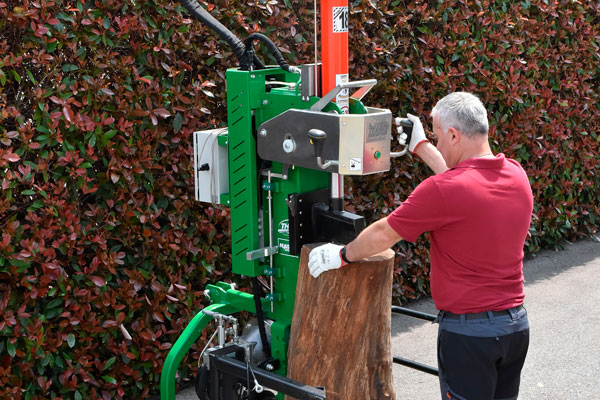

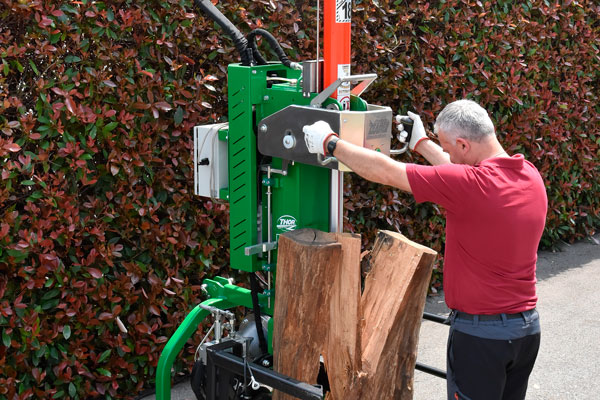

Magik Evolution, Thor Italy - durante fase di taglio

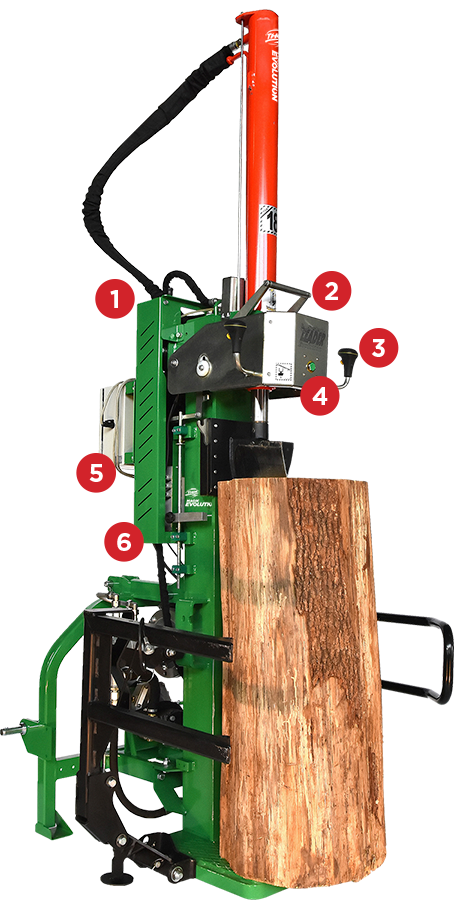

1

Electric distributor for AUTOMATIC dual speed + hammering system to facilitate the splitting of large logs
2

AUTOMATIC hydraulic cylinder coupling and uncoupling system.
3

System-Leader EVOLUTION (by holding down one button the approach phase is carried out; with both buttons pressed, the splitting cycle is activated)
4

Central button for blade release.
5

Control panel.
6

Electrical control box with integrated coil + 12-volt transformer (on 400-volt models).

Select the thumbnail to view the enlarged image a little further down

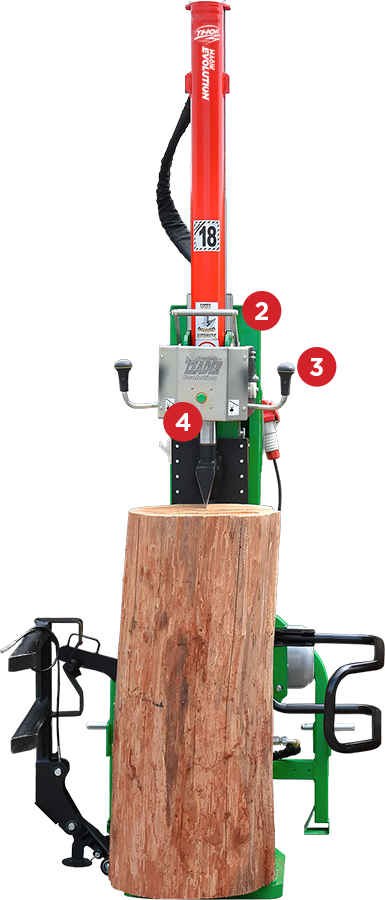

VPF - KOMBI

Max

120cm

Min - Max

5 cm - 90 cm

View the technical data sheet

ITEM No.	40.101	40.106	40.101	40.103	40.110
MODEL	Magik Evolution
Splitting height / Cutter stroke	124 cm / 114 cm (adjustable)
Hydraulic oil tank	22 lt		23 lt		38 lt
Forza di taglio	13 ton		18 ton		20 ton
Splitting force
Power supply EL = electric, V.PF = tractor, KOMBI = EL + V.PF	V.PF 540 rpm	KOMBI EL 400V + V.PF	V.PF 540 rpm	KOMBI EL 400V + V.PF	V.PF 540 rpm
Power required (HP/kW)	22 / 16	5,5 / 4 - 22 / 16	24 / 18	7,5 / 5,5 - 24 / 18	27 / 20
Working pressure (bar) PD = double pumb	260	250	280	280 / PD x EL	315
1ª cutting speed (cm/sec)	9	6 - 6	7	6,6 - 7	7
2ª cutting speed (cm/sec)	28	19 - 28	16	15 - 16	16
Return speed (cm/sec)	13	9 - 8,5	13	12 - 13	13
Rotation speed in rpm	450	1400 - 450	450	1400 - 450	450
3-point connector 1^st - 2^nd cat.	■	■	■	■	■
Working dimensions (W x L / H = 290 cm)	115 x 125	115 x 125	115 x 125	115 x 125	115 x 125
Weight (kg)	445	473	480	530	512
