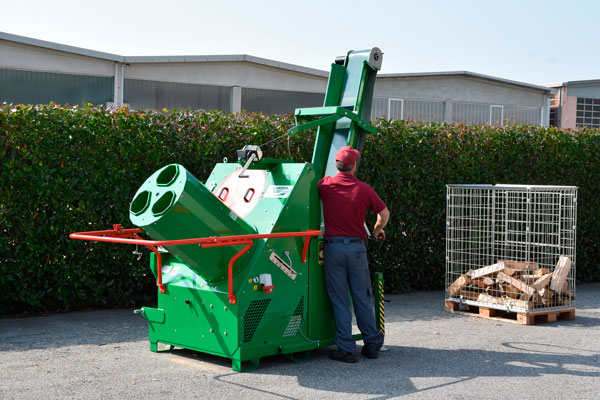

Revolver

Automatic saw

with patented fixed-drum loading system

Unique in its kind, the REVOLVER drum saw is equipped with the patented fixed-drum system ANDREA’s last system: ”: an innovation that simplifies loading operations and makes work safer and more efficient.

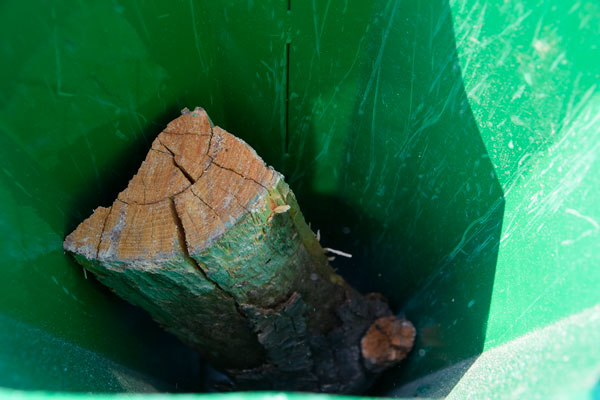

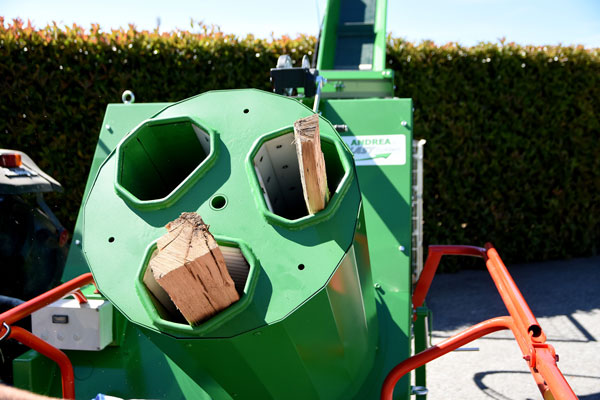

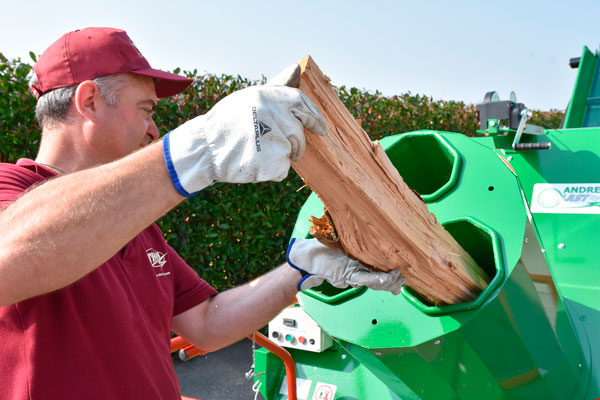

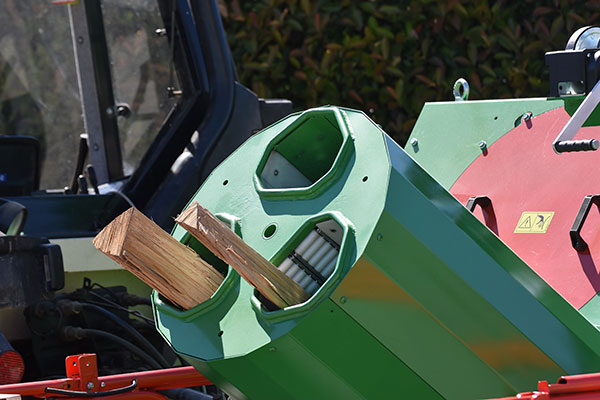

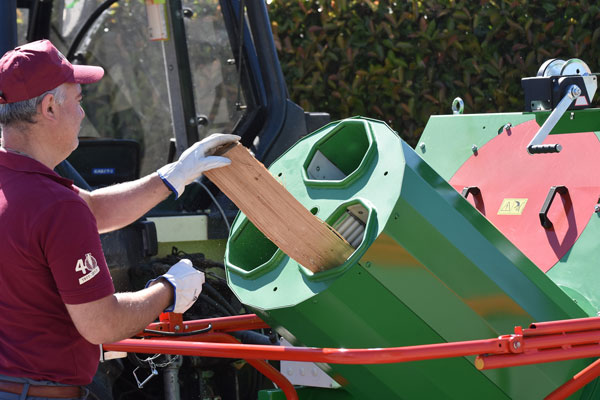

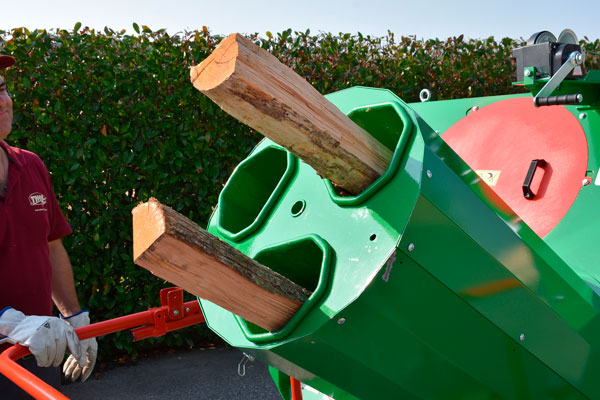

With the drum in a fixed position, wood loading takes place easily in the two lower channels, while cutting is performed in the upper channel.

Advantages that make the difference:

Fast, effortless loading thanks to the fixed drum position.
No jamming and no wood kickback, ensuring maximum safety during operation.
Energy savings and reduced wear: no idle rotations, only effective performance
More precise and efficient cutting, with logs securely held during blade operation.

With REVOLVER, every cut becomes simpler, safer and more cost-effective.
Technology meets practicality, delivering results that truly make a difference.

Download the technical data sheet

Technical features

Automatic drum rotation.
No risk of injury during loading.
No blade or drum movement when the channels are empty.
Complete shutdown at no-load.
Energy savings and reduced wear, thanks to the total absence of idle rotations
Sufficient clearance for logs up to ø 180 mm.
Clean cutting, thanks to the secure clamping of logs with a clamp before each individual cut.

Standard cutting blade, easily available on the market.
Simple and accessible replacement.
Easy and safe cutting length adjustment.
Hydraulic blade operation with electro-hydraulic controls.
Hydraulic system with 50 liters of oil and suction filter.
Automatic anti-jamming system.

Exclusive system:

Discover more

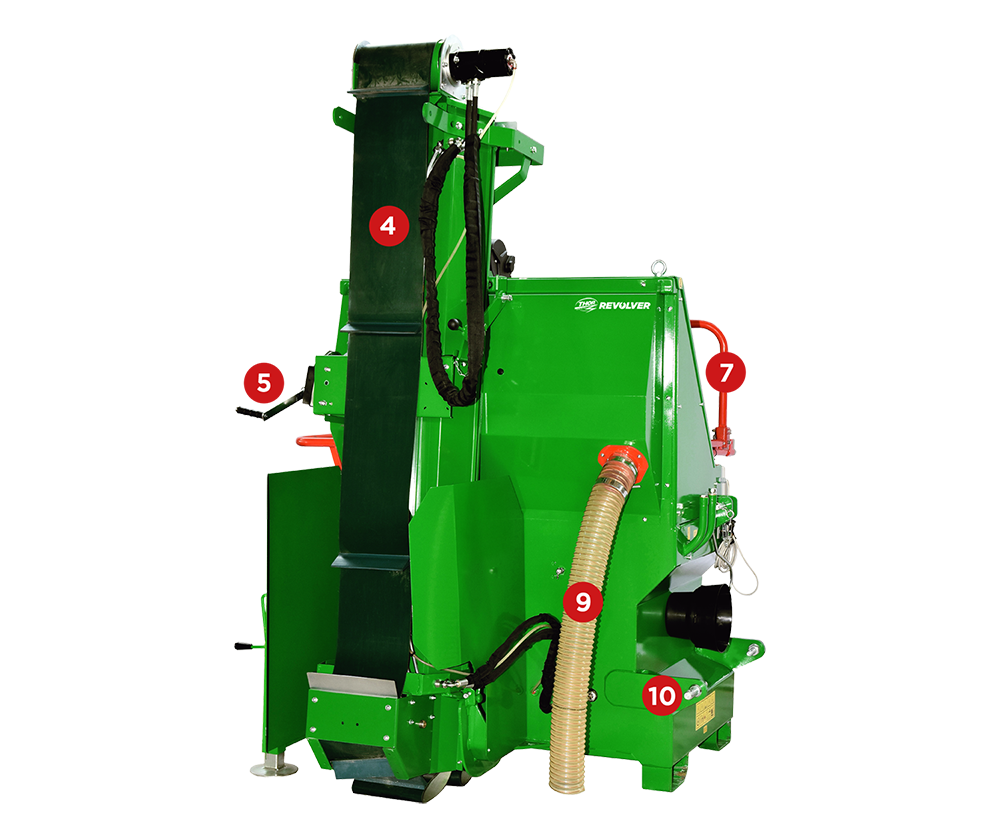

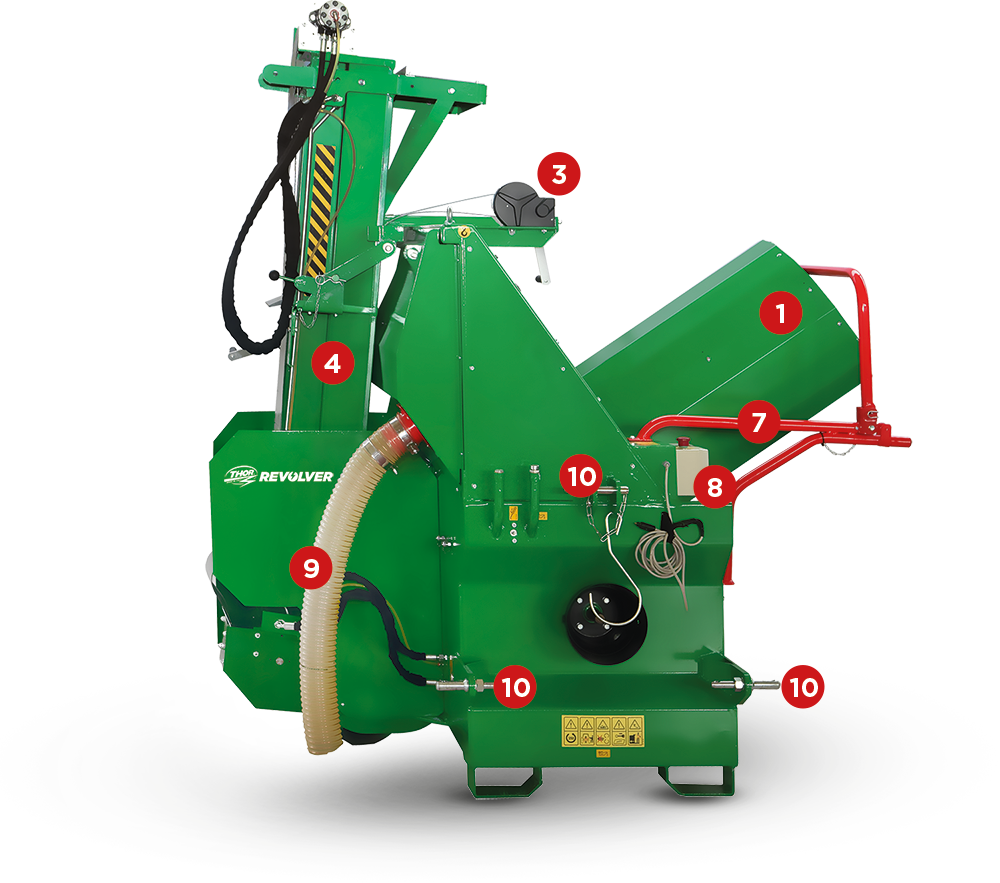

1

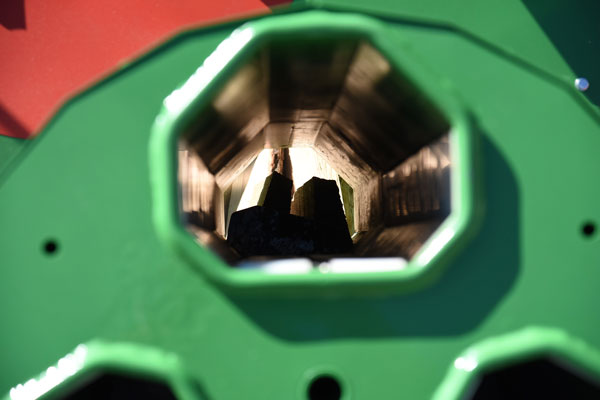

Cutting feed system via “Revolver” drum.
2

Protective guard for the cutting disc
2a

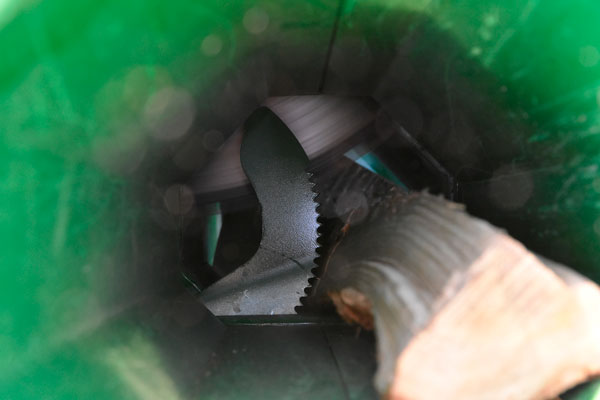

Cutting disc with carbide-tipped teeth (Widia).
3

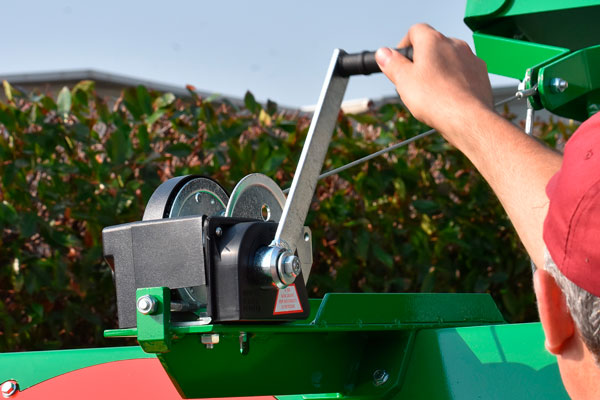

Manual winch for conveyor belt positioning (for unloading cut wood).
4

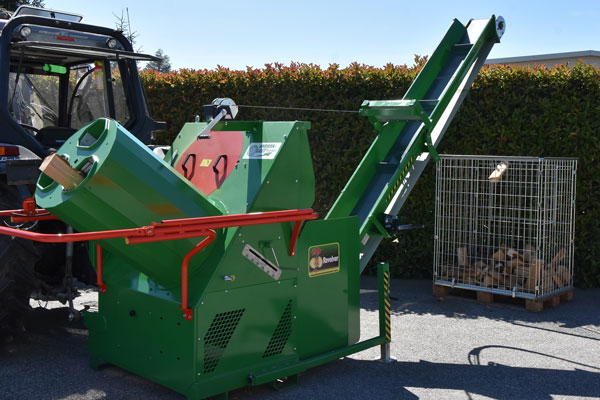

Conveyor belt for unloading cut wood pieces.
5

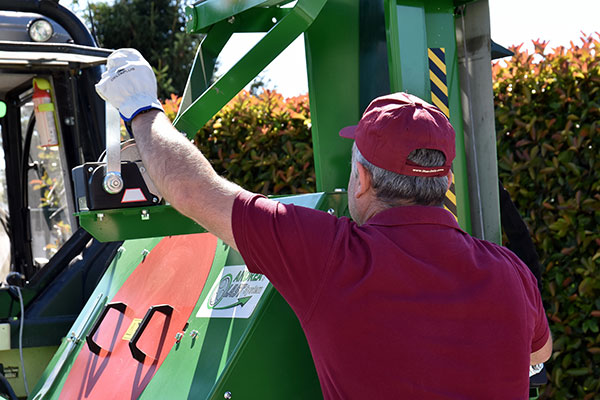

Manual winch for retracting the conveyor belt.
6

Cutting length adjustment.
7

Safety bar.
8

Control unit for cutting operations.
9

Sawdust discharge outlet.
10

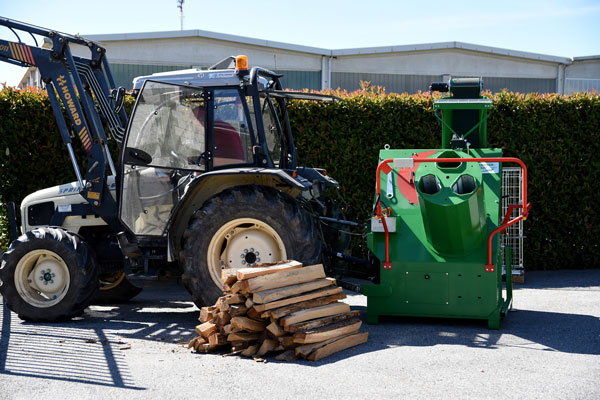

Connection to the tractor’s lifting system.

Select the thumbnail to view the enlarged image a little further down

VPF - EL - KOMBI

Cutting

18cm

Widia blade

600mm

Channels

3

View the technical data sheet

Item No.	RV.18.100/5	RV.18.101/5	RV.18.102/5
Model	Revolver
Max cutting depth	ø 18 cm
Widia blade – ø 30 mm hole included	ø 600 mm
Blade speed (rpm)	1600
Calibrated cutting adjustment	25-30-33-40-45 cm
Conveyor belt	5 m
Belt width x length	0,25 × 4,70 m
Max discharge height at 45°	3,10 ~
Power supply VPF = tractor, EL = electric, Kombi	V.PF 350 rpm/min.	EL 400 Volt	Kombi (EL+V.PF)
Power required (Hp / kW)	25 / 18	12 / 9	12 / 9 – 25 / 18
Blade stop brake	■	■	■
3-point connector, 1st – 2nd category	■	■	■
Cut-length adjustment with discharge chute to conveyor belt	■	■	■
Telescopic conveyor belt, 5 m	■	■	■
2 loading channels + 1 cutting channel (patented system)	■	■	■
Mechanical log clamping before cutting (patented system)	■	■	■
Transport dimensions (L x W x H, cm) without pallet	170 × 210 × 240
Working dimensions (L x W x H, cm) with 5 m belt at 45°	170 × 450 × 310
Total weight (kg)	900	910	1005
