Katana 700

Saw Bench

For private use

Katana 700 is a compact and versatile saw bench, , designed for private and hobby use. It delivers high performance in a simple and safe machine, making it ideal for users who want to cut firewood quickly and accurately. It is available in two versions, with a maximum cutting depth of 22 cm or 28 cm, to suit different cutting requirements.

Advantages that make the difference:

Compact design that takes up little space and ensures excellent manoeuvrability.
Stable and safe structure for precise and controlled cutting.
Easy to use, ideal even for users without professional experience.

Download the technical data sheet

Technical features

Transmission with flat belt, for better performance and overload protection
Three exclusive THOR systems: safety cover, release lever, emergency braking device
3-point connector, Category 1–2 (for tractor models)
Side support extension, providing stability and safety during operation, even when handling heavy and difficult logs.

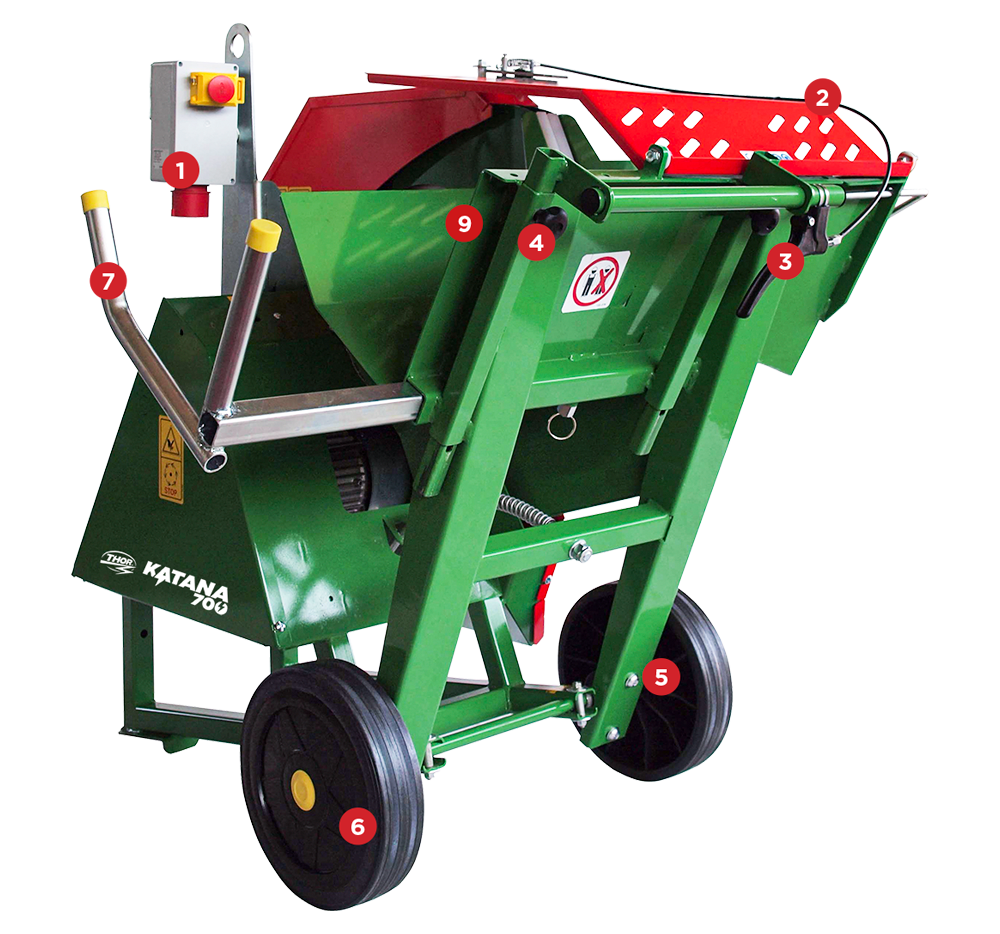

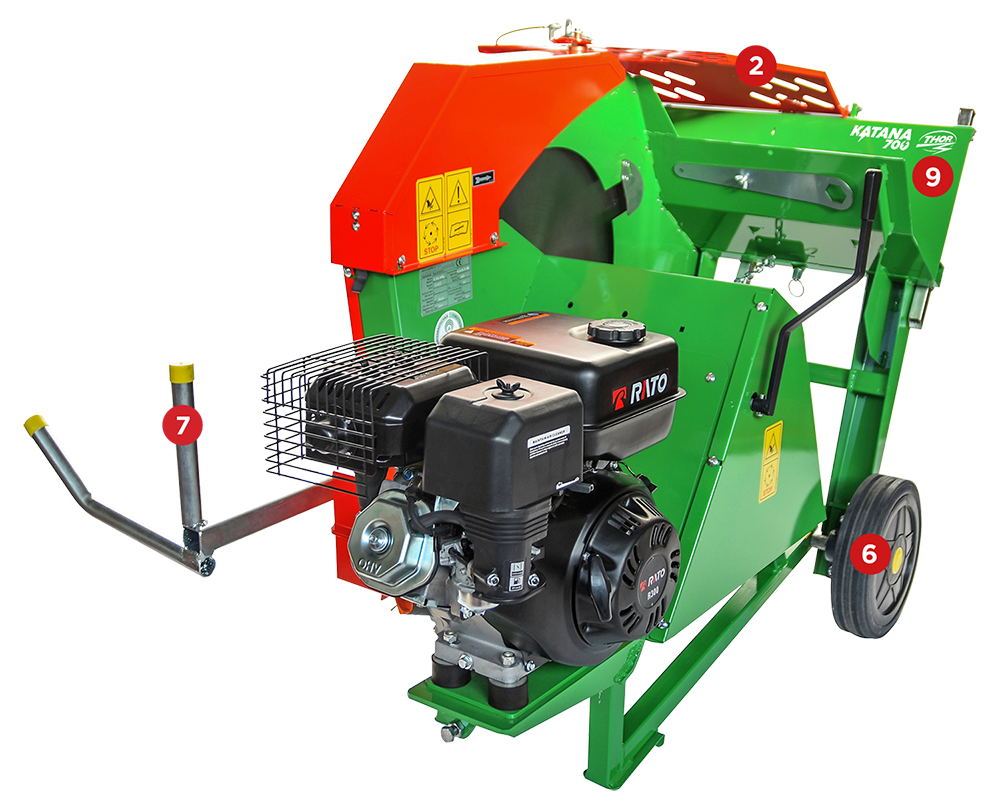

1

Switch with release coil, thermal protection and brake
2

Safety cover of the cutting area (exclusive THOR system)
3

Lever for unlocking the bench movement (exclusive THOR system)
4

Handle height adjustment for the action of the bench
5

Oscillating bearings mounted on the fulcrum
6

Full transport wheels 300 ø, as standard
7

Multiuse extension for: support of the logs being cut, handle for short distances and cardan shaft support
8

Emergency braking device for models with PTO (exclusive THOR system)
9

Supporting logs swinging bench with insider anti rolling device
10

Transmission with aluminium gearbox for tractor version
11

3-point connector, Category 1–2, for tractor version

Select the thumbnail to view the enlarged image a little further down

EL - VPF - VS

Max

ø 28 cm

ø 600 mm - ø 700 mm

View the technical data sheet

ITEM No.	K70.100	K70.101	K70.102	K70.103	K70.104
MODEL	Katana 700
Max. cutting diameter	ø 22 cm	ø 28 cm
Widia blade 30 mm dia. hole included	ø 600 mm	ø 700 mm
Blade revs (rpm)	1600	1400
Power supply EL = electric (S1), V.PF = tractor, VS = gasoline	EL 230 Volt	EL 230 Volt	EL 400 Volt	V.PF 450 rpm	VS 1400 rpm
Power required (HP/kW)	3 / 2,2	3 / 2,2	5 / 3,7	11 / 8	9 / 6,7
Flywheel mounted on the electric engine	*	■	*	▫	▫
Blade stop brake	■	■	■	■	■
3-point connector 1st - 2nd cat	▫	▫	▫	■	▫
Cut adjuster	■	■	■	■	■
Full wheels (ø mm)	300	300	300	300	300
Working dimensions (L x W x H cm)	110 x 130 x 115	110 x 130 x 115	110 x 130 x 115	110 x 130 x 115	110 x 130 x 115
Weight (kg)	130	142	133	131	180

OPTIONAL ACCESSORIES
Descrizione	Steel blade		Flywheel	Thrust roller	Cardan shaft
Item No.	DA.600.30	DA.700.30	D.280.19	D.60.120	600.059
K70.100	*	-	*	*	▫
K70.101	-	*	■	*	▫
K70.102	-	*	*	*	▫
K70.103	-	*	▫	*	*
K70.104	-	*	▫	*	▫
