Farmer Multiuse

Vertical hydraulic log splitter / horizontal transport

For independent operation anywhere

The Farmer Multiuse is a practical and functional vertical log splitter, designed for those who seek power and ease of use in a single machine. Available in 13 ton and 18 ton, versions, it delivers reliable performance and can be easily transported thanks to its towing hook with wheels.

The advantages that make the difference:

Side hoist that facilitates positioning of the log.
High splitting force for fast and precise operation.
Robust structure for fast and precise operation.

The Farmer Multiuse is the ideal choice for those looking for a versatile, durable and easily transportable log splitter, perfect for agricultural or rural use—without compromising on THOR build quality.

Download the technical data sheet

Technical features

Self-lubricating, easily interchangeable Teflon sliding guides
Equipped with a side hoist to reduce manual effort.
Transport is intended exclusively in the horizontal, towed position
Special steel cutter

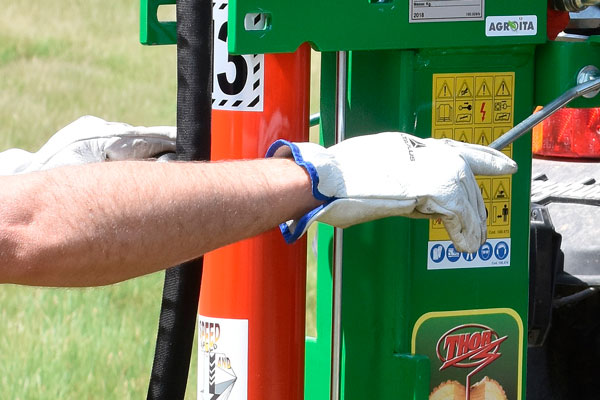

Farmer Multiuse, Thor Italy - doppi comandi

Farmer Multiuse, Thor Italy - posizione di trasporto

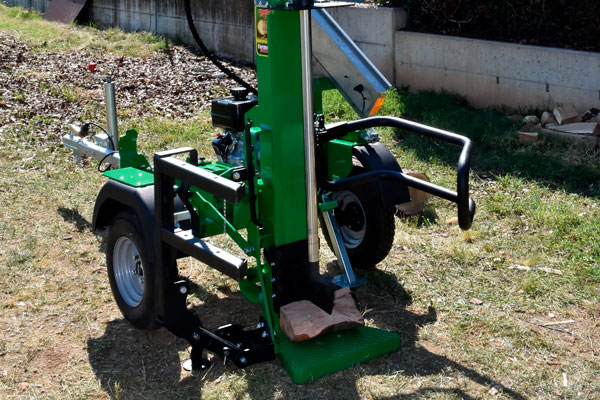

Farmer Multiuse, Thor Italy - pronto per la fase di utilizzo

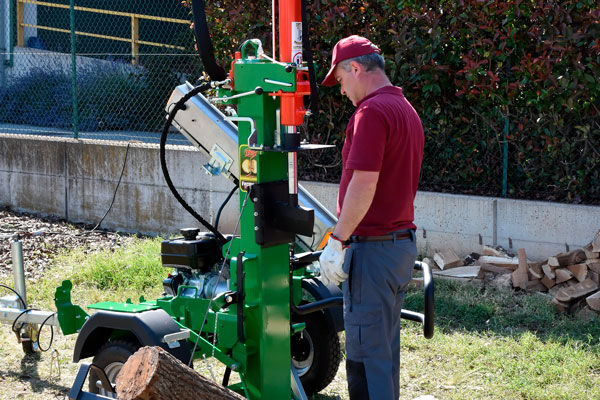

Farmer Multiuse, Thor Italy - durante fase di taglio

Exclusive system:

Discover more

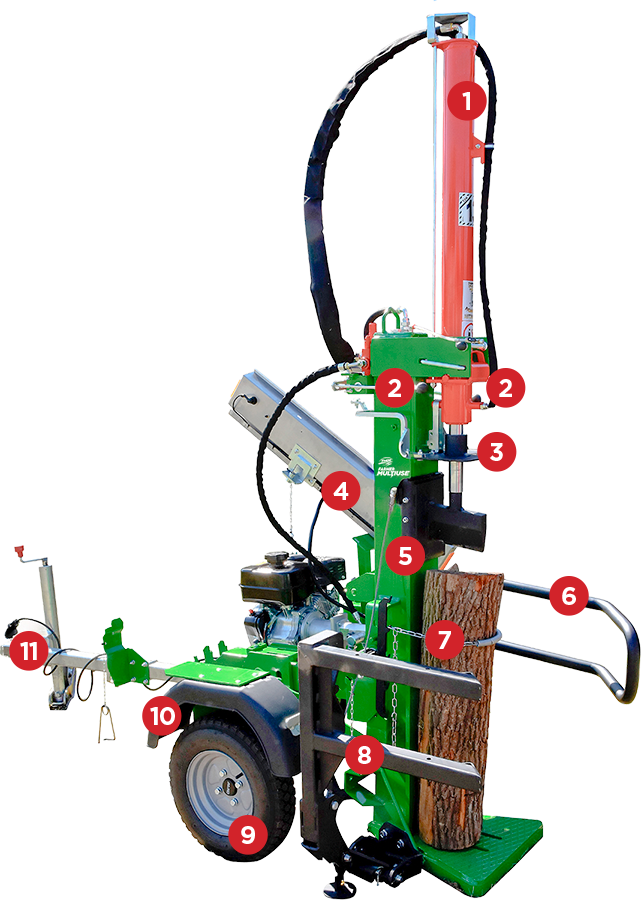

1

Hydraulic cylinder with a single position for both transport and operation
2

Ergonomic dual manual controls for the approach and splitting phase
3

Sensor for blocking the hydraulic flow
4

Rear lights bar for road traffic in rest position
5

Guides
6

Double side protection, with integrated lifting hook support, foldable at the end of work
7

Log fixing device - FIXING WOOD
8

Side hoist
9

Pneumatic wheels
10

Plastic mudguards
11

Towing hook approved for ø 50 mm ball. Stabilizer wheel

Select the thumbnail to view the enlarged image a little further down

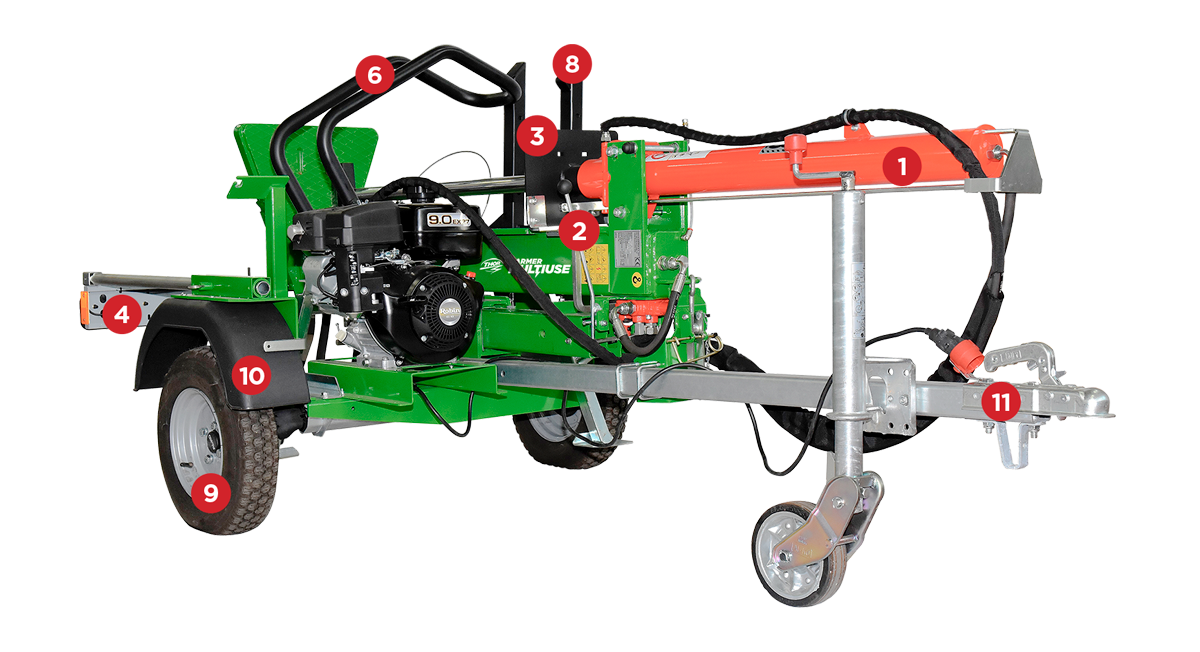

Farmer Multiuse - Motore a benzina posizione di trasporto

VS - VS Orizz.

Max

104cm

Min - Max

5 cm - 90 cm

View the technical data sheet

ITEM No.	37.M.111	39.M.121
MODEL	Farmer Multiuse
Splitting height / Cutter stroke	104 cm / 94 cm
Controls	Standard
Splitting force	13 ton	18 ton
Power supply VS = gasoline	VS 3200 rpm	VS 3200 rpm
Power required (HP/kW)	9 / 6,7	13 / 9,55
Working pressure (bar) PD = double pump	260/PD	280/PD
Hydraulic oil tank	18 lt	19 lt
1ª cutting speed (cm/sec)	8	6
2ª cutting speed (cm/sec)	25	14
Return speed (cm/sec)	11,5	11
Rotation speed in rpm	3200	3200
Side hoist	■	■
Rear lights bar	■	■
Mud guards	■	■
Towing hook	■	■
Omologazione stradale	*	*
Public road homologation (L x W x H) cm	290 x 122 x 263
Weight (kg)	464	494
